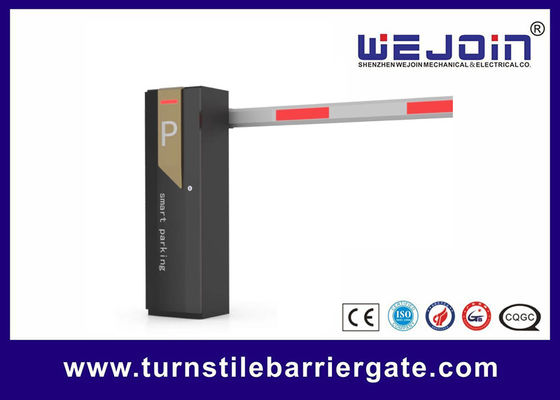

120w Max Power Electronic Boom Gate with Adjustable Running Speed 4.5m Straight Arm

Basic Information
Place of Origin: China
Brand Name: WEJOIN
Certification: CE, ISO9001, FCC, IECQ
Model Number: E50D
Minimum Order Quantity: 1 PCS
Price: Negotiation
Packaging Details: Carton
Delivery Time: 14 working day
Payment Terms: T/T, Western Union
Supply Ability: 10000 sets/month
Detail Information
Opeating Time: 2-4s Max Power: 120w
Communication Interface: RS485 Relative Humidity: 30%~80%, No Condensation
Motor Material: Aluminum Alloy Housing Material: Steel
Net Weight: 39kg Voltage: AC220V, AC110V
High Light:

120w Max Electronic Boom Gate


4.5m Arm Electronic Boom Gate

Product Description

Product Description:

The Components of the Product

The product is comprised of four essential parts:

  • Cabinet - This serves as the main housing for the product and houses the other components.
  • Transmission Mechanism - This is responsible for transmitting motion and power to the other parts of the product.
  • Control Unit - This acts as the brain of the product, controlling its movements and functions.
  • Boom - This is the physical barrier that blocks or allows access to the designated area.

The product is designed for use in parking lot entrance and exit control systems, and can be installed on both the left and right side of the entrance or exit.



No need for mechanical leveling and maintenance with our spring-free design.

Experience high levels of safety with the boom that stays in place even when power is off.

Switch directions in just 30 seconds with minimal effort.

Take advantage of Bluetooth control for convenient one-key remote service.

Reliable performance is guaranteed with the perfect combination of worm gear and gear.

Equipped with external radar, loop detector, and infrared photocell anti-smashing functions, our product also features a built-in DC 12V power output that can be used to power external radar.

Easily communicate with RS485 or connect it off-line with RS485 support.

For flexibility, choose between a DC24V or traditional power supply.


Technical Parameters:


Working Temperature (Motor): -35℃~ + 80℃

Power Supply Input Voltage: AC110±10%, or AC220V±10%

Controller Input Voltage: DC24V±10%, 15A

Motor Power: 120W MAX

Relative Humidity: 30%~80%, No Condensation

Distance of Remote Control: L≥30M

 : 2~4 seconds adjustable

MTBF: 3,000,000 times

Straight Arm Length: 4.5m



The Function of Barrier Gates

Barrier gates are essential for managing the entry and exit of vehicles and personnel in various settings. These gates can be found in high-speed toll booths, commercial plazas, residential neighborhoods, train stations, and even at customs checkpoints.

Controlling Access with Barrier Gates

One of the main uses of barrier gates is to control access. By opening and closing these gates, access can be granted or restricted to certain areas depending on the authorized personnel. This is especially important for high-speed toll gates and customs checkpoints, where only authorized vehicles are allowed to pass through.

Efficient Traffic Management

Barrier gates also play a crucial role in efficient traffic management. In commercial plazas and residential areas, these gates help regulate the flow of traffic and prevent congestion. At train stations and other transportation hubs, barrier gates help guide the movement of passengers and vehicles to ensure a smooth and organized process.

Security Measures

In addition to managing access and traffic, barrier gates also serve as a security measure. By having these gates in place, unauthorized individuals and vehicles can be kept out of restricted areas. This adds an extra layer of safety and protection for both the public and private sectors.

Versatile and Durable

Barrier gates are available in various types and sizes to fit the specific needs of different locations. They are also designed to withstand harsh weather conditions, making them durable and long-lasting. With regular maintenance, barrier gates can continue to function effectively for many years.

In conclusion, barrier gates play an important role in managing entry and exit in a variety of settings. From controlling access and managing traffic to providing security and durability, these gates are essential for efficient and safe operations.


Packing and Shipping:

Electronic Barrier Gates Packaging and Shipping

Our Electronic Barrier Gates are carefully packaged to ensure safe delivery to your doorstep. Each unit is packed in a sturdy cardboard box with foam inserts to protect the product during transit.

The packaging includes:

  • 1 Electronic Barrier Gate unit
  • 2 Remote Controls
  • 1 User Manual
  • Mounting hardware

For international shipments, the product will be securely wrapped and placed in a durable shipping crate to withstand long-distance transport.

We offer free standard shipping within the United States. For international orders, shipping fees will vary depending on the destination country.

Please allow 1-2 business days for processing and packaging before the product is shipped out. Once shipped, you will receive a tracking number via email to track your package's delivery status.

If you require expedited shipping, please contact us for a quote. Additional charges may apply.

At Electronic Barrier Gates, we take great care in ensuring your product arrives safely and in a timely manner. If you encounter any issues with your shipment, please don't hesitate to contact us.
