Fence Boom Electronic Parking Lot Arm Gate Waterproof for Outdoor

Basic Information
Place of Origin: China
Brand Name: WEJOIN
Certification: CE, ISO,
Model Number: WJDZ601
Minimum Order Quantity: 1 unit
Price: negotiation
Packaging Details: Carton package 109*39*42cm
Delivery Time: 3~7 working days after payment received
Payment Terms: T/T, Western Union
Supply Ability: 5000 units/week
Detail Information
VoltagName: Bi-directional Barrier Gate Housing Color: Orange
Package: Carton Voltage: 110v/220v
Feature: Manual Release Application: Parking System
High Light:

parking gate arm


automatic parking barrier

Product Description

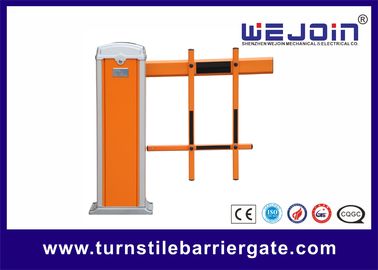

Fence Boom Electronic Parking Lot Arm Gate Waterproof for Outdoor



Quick Detail



(1). Name: Bi-directional Barrier Gate

(2). Certificate:CE, ISO,

(3). Net Weight:60KG

(4). Application : Parking System

(5). Speed:3/6 second

(6). Feature: Manual release

(7). Rated Power:80W

(8). Voltage:AC220V, AC110V






Model Selection and Differences



Model Boom Shape Max Boom Length Speed
WJDZ60116 Straight boom 4.5m 6 seconds
WJDZ60113 Straight boom 4m 3 seconds
WJDZ60126 90 degree, Articulated boom 4m 6 seconds
WJDZ60123 90 degree, Articulated boom 3m 3 seconds
WJDZ60136 180 degree, Articulated boom 4m 6 seconds
WJDZ60133 180 degree, Articulated boom 3m 3 seconds
WJDZ60146 Two-level, fence boom 3.5m 6 seconds
WJDZ60156 Three-level, fence boom 3m 6 seconds



Functions & Features:



1. Advanced manual release
2. Boom can rise and fall on left/right side by setting on the same machine
3. No need to change the balance spring when changing the booms
4. Adopts the 3rd generation WEJOIN machine core
5. Supports the infrared photocell for anti-bumping function (optional)
6. Supports the external and internal vehicle loop detector (optional)
7. Auto closing
8. RS485 communication module (optional)
9. Thermal radiates rapidly, no thermal protection
10. Die-cast aluminum alloy machine core and advanced double-stage driving motor effectively solve the problem of mechanism block up
11. Special art and craft makes out the most modernized and fashionable housing
12. Safety photo electricity limit switch






Barrier Gate with aluminum alloy housing screen uses the third generation motor. It is stable and has long service life performance, running one million times. And the barrier can work with parking system very well, and can be used in door and outdoor.






Name Barrier Gate Application Parking System
Speed 3/6 second Max Boom Length 6m
Power Supply AC220V/AC110V Rated Power 120W
Motor Rotational Speed 1400rpm Protection Degree IP44
Working Temperature -35℃~75℃ Humidity ≤90%
Remote Control Distance ≤50m Boom Dimension 45*100mm
Net Weight 39kg Gross Weight 44kg
Certificate CE/ISO Boom Type Octagonal boom






Communication with customers



Q: What's WEJOIN monthly production capacity for barrier gate?

A: 3000 units.


Q: As for the over-heating problem of barrier gate

A: WEJOIN barrier gate has motor cooling fan which can solve the problem of over heating-protection. WJDZ601 and WJDZ701 don't have motor cooling fan, but the aluminum alloy housing of WJDZ601 can make the heat radiate quickly, and there’re shutters on the housing to let wind in.


Q: Sometimes, Why the barrier boom would open automatically?

A: Please check if the limit switch is on the right position; if not, please adjust the Limit Switch. Please refer to last page of Barrier Gate Manual. Or you can adjust the adjusting screw. And the last step is to check the intensity of the spring.

Q: What’s the remote control distance?

A: In general, most of WEJOIN 418 remote control can cover 100 meters, but it is not safe and stable to control the barrier gate from 100 meters away. WEJOIN recommends using the remote control within 30 meters or 50 meters.
