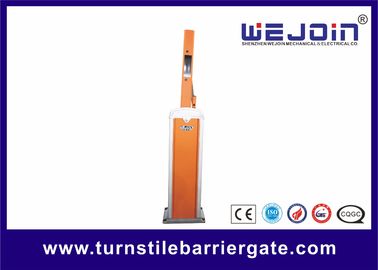

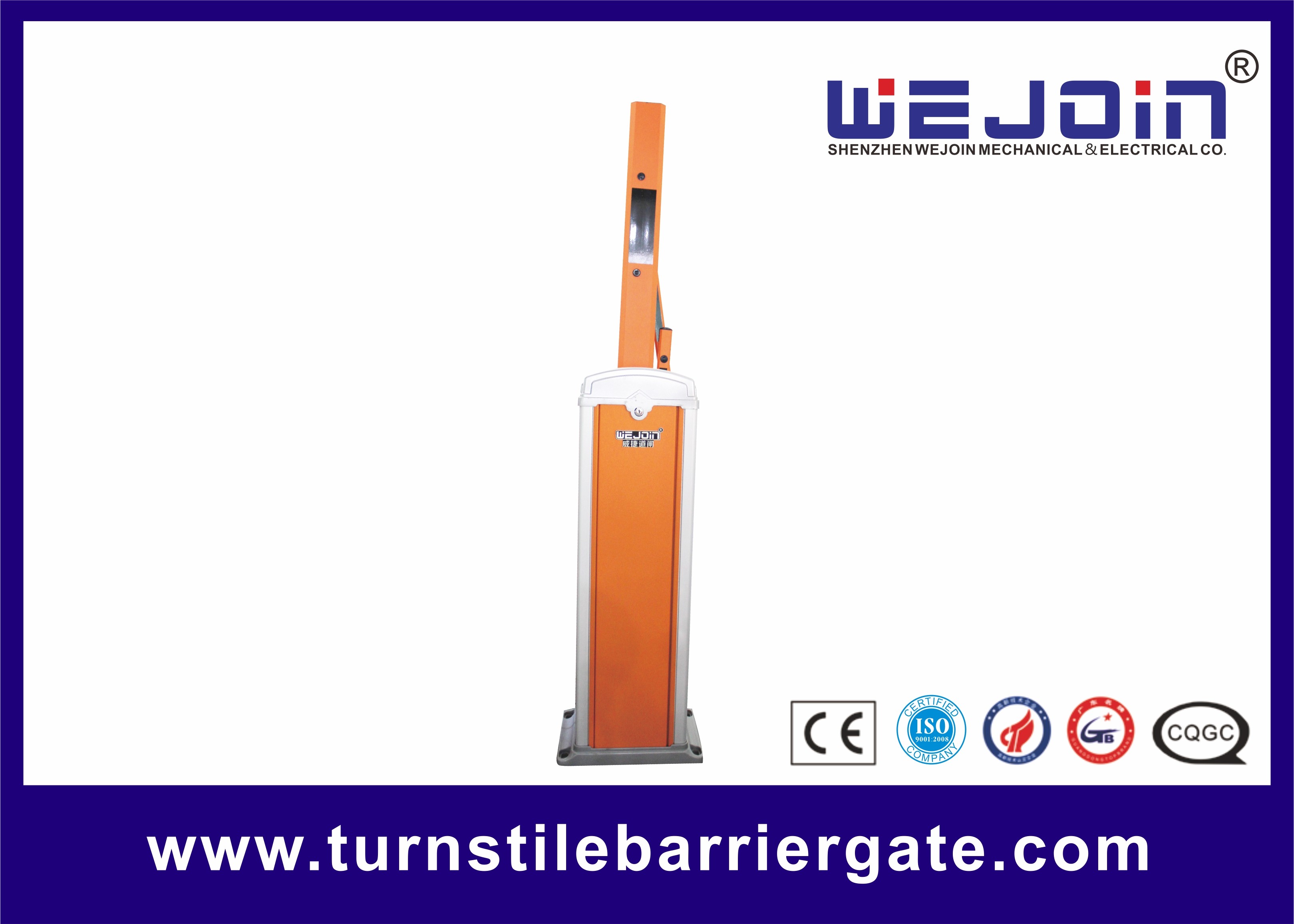

Wire Control Automatic Car Park Barrier Stainless Steel With Folding Boom

Basic Information
Place of Origin: China
Brand Name: WEJOIN
Certification: CE, ISO,
Model Number: WJDZ601
Minimum Order Quantity: 1 unit
Price: negotiation
Packaging Details: Carton package
Delivery Time: 3~7 working days
Payment Terms: T/T, Western Union
Supply Ability: 5000 units/week
Detail Information
Boom Type: 90 Degree / 180 Degree Package: Carton
Housing Material: Stainless Steel Voltage: 110v/220v
Speed: 3/6 Second Rated Power: 120W
High Light:

parking gate arm


automatic parking barrier

Product Description

Wire Control Automatic Car Park Barrier Stainless Steel With Folding Boom



Quick Detail



(1). Name: Bi-directional Barrier Gate

(2). Feature: Manual release

(3). Net Weight:60KG

(4). Application : Parking System

(5). Speed:3/6 second

(6). Certificate:CE, ISO,

(7). Rated Power:80W

(8). Voltage:AC220V, AC110V






Model Selection and Differences



Model Boom Shape Max Boom Length Speed
WJDZ60116 Straight boom 4.5m 6 seconds
WJDZ60113 Straight boom 4m 3 seconds
WJDZ60126 90 degree, Articulated boom 4m 6 seconds
WJDZ60123 90 degree, Articulated boom 3m 3 seconds
WJDZ60136 180 degree, Articulated boom 4m 6 seconds
WJDZ60133 180 degree, Articulated boom 3m 3 seconds
WJDZ60146 Two-level, fence boom 3.5m 6 seconds
WJDZ60156 Three-level, fence boom 3m 6 seconds



Functions & Features:



1. Crank and rod structure makes the boom run placidly.

2. Double safety limit switches (photo electricity limit switch and motor memory sensor).

3. Reversing on obstacle.

4. Auto-closing.

5. Support the infrared photocell for anti-bumping function (optional)

6. Support external and internal vehicle loop detector (optional)

7. Traffic light interface (AC220V, can support lamp with 40W)

8. Wire control (switch signal) /Remote control (418MHZ)

9. RS485 communication module( optional)

10. Open, close control interface for parking system

11. Provide limit state signal for parking system

12. Wheel manual release. In case of power off, rotate the wheel manual release on the bottom of the motor to raise the boom manually. When power on, the motor will work normally.

13. Machine core with strong and double springs, makes the machine core work more steadily.

14. Die-casting aluminum alloy motor, precise and good at thermal radiation.





Barrier Gate with aluminum alloy housing screen uses the third generation motor. It is stable and has long service life performance, running one million times. And the barrier can work with parking system very well, and can be used in door and outdoor.






Model WJDZ601
Working Temperature -40℃~+75℃
Voltage 220V±10%, 110V±10%, 50/60HZ
Rated power 120W
Relative humidity ≤90%
Remote control distance ≥30m
Net weight 35kgs
Speed 3S, 6S
Max boom length 6 meters




Communication with customers



Q: What's WEJOIN monthly production capacity for barrier gate?

A: 3000 units.


Q: As for the over-heating problem of barrier gate

A: WEJOIN barrier gate has motor cooling fan which can solve the problem of over heating-protection. WJDZ601 and WJDZ701 don't have motor cooling fan, but the aluminum alloy housing of WJDZ601 can make the heat radiate quickly, and there’re shutters on the housing to let wind in.


Q: Sometimes, Why the barrier boom would open automatically?

A: Please check if the limit switch is on the right position; if not, please adjust the Limit Switch. Please refer to last page of Barrier Gate Manual. Or you can adjust the adjusting screw. And the last step is to check the intensity of the spring.

Q: What’s the remote control distance?

A: In general, most of WEJOIN 418 remote control can cover 100 meters, but it is not safe and stable to control the barrier gate from 100 meters away. WEJOIN recommends using the remote control within 30 meters or 50 meters.
