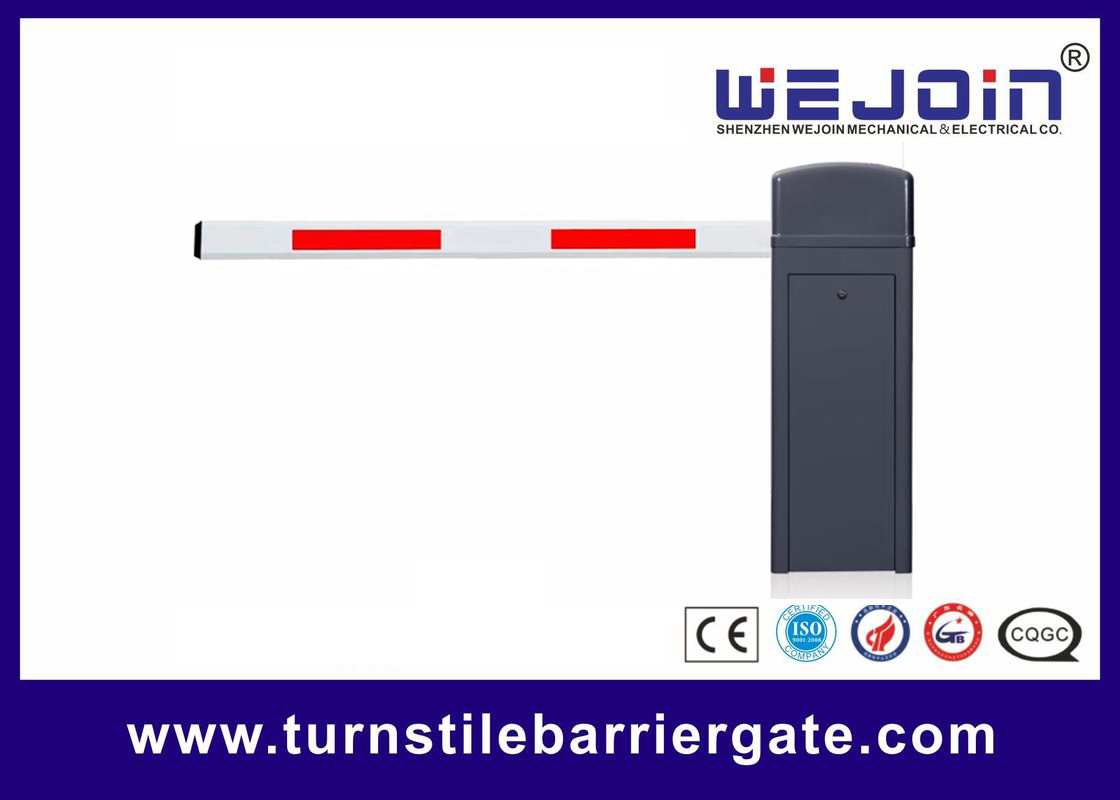

CE Approved Straight Arm Barrier Gate for Commercial Parking Lots
Parking Barrier Gate Technical Data
1. Working temperature (motor): -35℃~ + 70℃
2.Power supply input voltage: AC100~265V
3. Controller input voltage: DC24V±10%, 10A
4. Motor power: 240W MAX
5. Relative Humidity: 30%~80%, No condensation
6. Distance of remote control: L≥30M
Parking Barrier Gate Application
Suitable for indoor as well as an outdoor parking area
Parking lots, goods yard, railway crossing, commercial premises, apartment block access shopping malls, hospitals, stadiums, business centers, etc.
Parking Barrier Gate Functions & Features
1. DC variable frequency control motor drive, equipped with connecting rod transmission mechanism, balance spring, stable and reliable operation, motor life up to 4.5 million times, spring life 500,000 times.
2. Auto reversing on obstacle function, the boom will auto reverse when it meets obstacle during the closing process.
3. Support external radar, coil, infrared anti-smashing function, built-in DC 12V power output, can be used for external radar power supply.
4. Support RS485 communication or RS485 off-line connection.
5. Optional Bluetooth module, convenient debugging of barriers through small programs.
6. Large LCD screen display, English visual menu, easy function selection and debugging.
7. Left-installation and right-installation can be changed.
8. Speed 1.5~6 seconds can be adjusted.
Parking Barrier Gate Common Malfunctions and Solutions
|
Malfunction Phenomenon
|
Possible Causes
|
Solution
|
|
The opening and closing speed is too fast for the first time after power on
|
Regular menu 1.6/2.6 learning speed value is too large
|
Reduce the corresponding value
|
|
In manually finding limit, boom can’t run to limit position, and the buzzer sounds
|
Regular menu 1.6/2.6 learning speed value is too small
|
Increase the corresponding value and try again
|
|
Prompt: The motor sensor is not detected
|
The motor sensor plug is not plugged in or the wire is loose
|
Plug well the motor sensor
|
|
Motor sensor failure
|
Replace the motor
|
