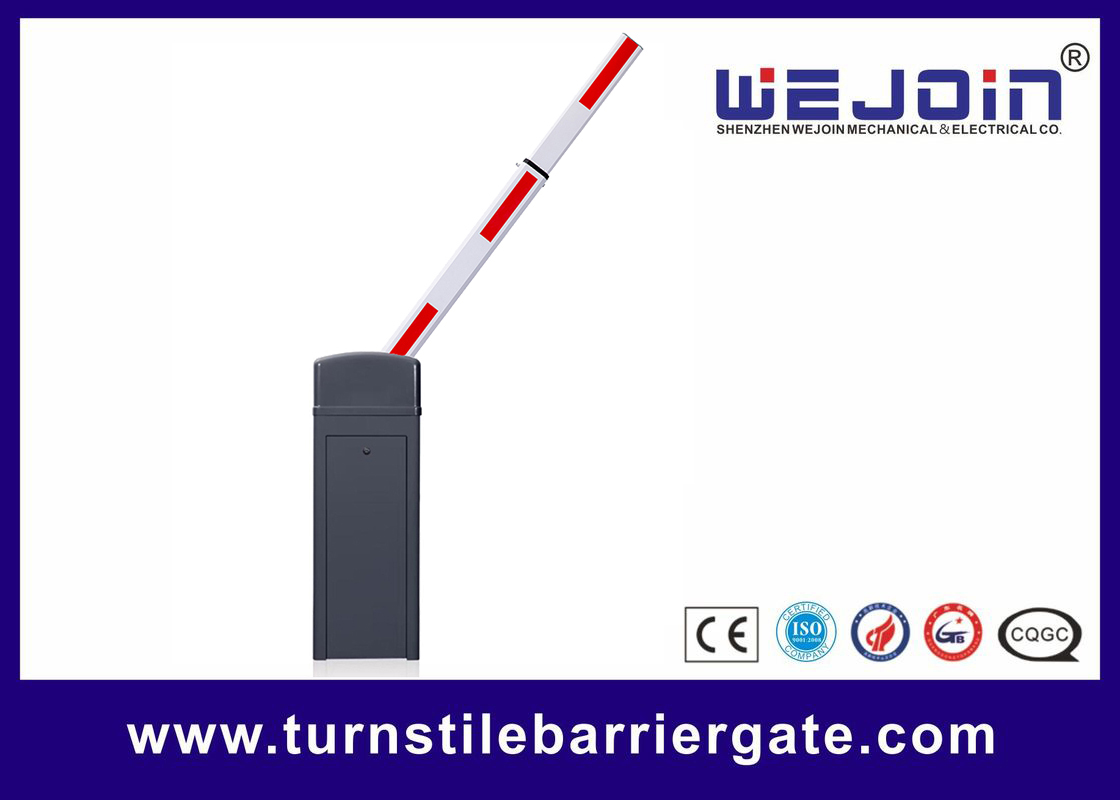

6m Telescopic Straight Arm Barrier Gate for Commercial Parking Lots CE Approved
Parking Barrier Gate Functions & Features
1. DC variable frequency control motor drive, equipped with connecting rod transmission mechanism, balance spring, stable and reliable operation, motor life up to 4.5 million times, spring life 500,000 times.
2. Auto reversing on obstacle function, the boom will auto reverse when it meets obstacle during the closing process.
3. Support external radar, coil, infrared anti-smashing function, built-in DC 12V power output, can be used for external radar power supply.
4. Support RS485 communication or RS485 off-line connection.
Parking Barrier Gate Common Malfunctions and Solutions
|
Malfunction Phenomenon
|
Possible Causes
|
Solution
|
|
The opening and closing speed is too fast for the first time after power on
|
Regular menu 1.6/2.6 learning speed value is too large
|
Reduce the corresponding value
|
|
In manually finding limit, boom can’t run to limit position, and the buzzer sounds
|
Regular menu 1.6/2.6 learning speed value is too small
|
Increase the corresponding value and try again
|
|
Prompt: The motor sensor is not detected
|
The motor sensor plug is not plugged in or the wire is loose
|
Plug well the motor sensor
|
|
Motor sensor failure
|
Replace the motor
|
Parking Barrier Gate Technical Data
1. Working temperature (motor): -35℃~ + 70℃
2.Power supply input voltage: AC100~265V
3. Controller input voltage: DC24V±10%, 10A
4. Motor power: 240W MAX
5. Relative Humidity: 30%~80%, No condensation
6. Distance of remote control: L≥30M
Warranty and Service Items
1. Free service is offered for component parts in one year warranty time, (not includes the barrier boom or remote)
2. Lifetime service with charge accordingly.
3. Technical questions are supported.
4. The below items and situations are not included in the range of free service:
4.1. The user does not follow the instruction and cause any damage of the product.
4.2. The power supply is not stable, over the range of permitted voltage, or not accordant to safety electric using standard.
4.3. The user installs or uses the product in the wrong methods, cause damage to the appearance of the product.
4.4.Natural disaster causes damage to the product.
4.5. Warranty time is over.
4.6. Service items are out of our promises.
