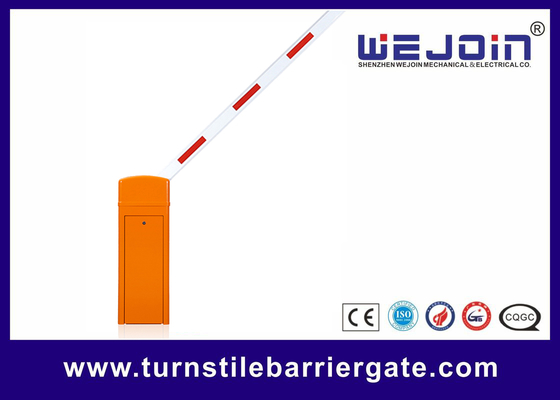

Orange Color 6m Telescopic Straight Arm Barrier Gate DC24V brushless motor
Parking Barrier Gate Common Malfunctions and Solutions
|
Malfunction Phenomenon
|
Possible Causes
|
Solution
|
|
The opening and closing speed is too fast for the first time after power on
|
Regular menu 1.6/2.6 learning speed value is too large
|
Reduce the corresponding value
|
|
In manually finding limit, boom can’t run to limit position, and the buzzer sounds
|
Regular menu 1.6/2.6 learning speed value is too small
|
Increase the corresponding value and try again
|
|
Prompt: The motor sensor is not detected
|
The motor sensor plug is not plugged in or the wire is loose
|
Plug well the motor sensor
|
|
Motor sensor failure
|
Replace the motor
|
Parking Barrier Gate Functions & Features
1.DC frequency control motor drive, with connecting rod transmission mechanism, balance spring, stable and reliable operation, motor life up to more than 4.5 million times, spring life of 500,000 times.
2. The whole series is equipped with the function of rebound in case of obstruction as standard, when the boom is obstructed in the process of falling, it will rebound automatically.
3. Support external radar, coil, infrared anti-smash function, built-in DC 12V power output, can be used for external radar power supply.
4. Support RS485 communication or RS485 folio on-line.
5. Optional Bluetooth module, convenient debugging of barrier gates through small programs.
6. Large LCD screen display, Chinese visualization menu, easy function selection and debugging.
7. Left and right to the interchangeable.
8. Starting and ending lever speed support 1.5~6 seconds adjustable.
Parking Barrier Gate Technical Data
1. Working temperature (motor): -35℃~ + 70℃
2.Power supply input voltage: AC100~265V
3. Controller input voltage: DC24V±10%, 10A
4. Motor power: 240W MAX
5. Relative Humidity: 30%~80%, No condensation
6. Distance of remote control: L≥30M
Maintenance
1. Keep the barrier gate clean.
2. Check the joints every month in case of any loose parts.
3. Check the balance status of spring after the barrier gate running 300,000 times, and readjust the balance. And change new springs after running 500,000 times (or 12 months), to avoid spring breaking due to excessive fatigue.
4. Check the easily worn-out parts every half year and renew it.
5. Remote control distance will be shortened or not work in cases like big object screening, battery exhausting, extreme weather.
