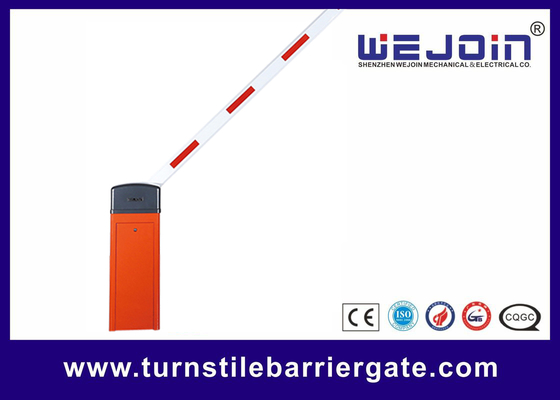

Access Control Red Color 6m Straight Arm Barrier Gate DC24V Brushless Motor
Parking Barrier Gate Technical Data
| Item |
Specification |
| Working temperature (motor) |
-35℃ ~ +70℃ |
| Power supply input voltage |
AC100~265V |
| Controller input voltage |
DC24V±10%, 10A |
| Motor power |
240W MAX |
| Relative Humidity |
30%~80%, No condensation |
| Distance of remote control |
L≥30M |
Parking Barrier Gate Functions & Features
1. Motor Functions & Features Self - developed DC24V brushless motor, with stable and reliable worm gear and planetary reduction transmission structure, large torque, and wear resistance.
2. Control System Functions & Features DC variable - frequency control system, precise control, more flexible running, less mechanical impact and longer service life.
3. Auto - reversing on Obstruction Functions & Features Sensitive, responsive, safe and reliable.
4. Item Control Panel Functions & Features Large LCD screen display, English visual menu, simple maintenance and easy operation.
5. Remote Controller Functions & Features 433MHZ, simple to add remote controllers.
6. Operation during Power - off Functions & Features Turn the handwheel or lift the boom manually to realize the boom up and down, and it can also be powered by a DC24V battery, or open one time by a super capacitor backup.
7. Motorcade Passing, Counting, Auto - aging Test, Delay Auto - closing, Relay Signal Output, RS485 Communication Functions & Features Support
8. Loop Detector, Infrared Photocell, Radar Functions & Features Optional
9. Warranty Period Functions & Features 24 months for motor and control board
Barrier Gate Warranty and Service Items
1. Free service is offered for component parts in one year warranty time. (not includes the barrier boom or remote)
2. Lifetime service with charge accordingly.
3. Technical questions are supported.
4. The below items and situations are not included in the range of free service:
4.1. The user does not follow the instruction and cause any damage of the product.
4.2. The power supply is not stable, over the range of permitted voltage or not accordant to safety electric using standard.
4.3. The user installs or uses the product in wrong methods, cause damage to the appearance of product.
4.4. Natural disaster causes damage to the product.
4.5. Warranty time is over.
4.6. Service items are out of our promises.
