Name: Automatic Arm Barrier System Traffic Boom Vehicle Barrier Gate Two Fence Boom
Brand: Shenzhen Wejoin Mechanical & Electrical Co.
SKU: CB01VF-I
Price: 475.00 USD
Availability: InStock

Features Gallery Product Description Request A Quote

Features

Specifications

Boom Type: 90 Degree Folding Boom

Voltage: AC 110V-265V

Boom Length: Max 6M (customized)

Warranty: 2 Year

Housing Color: Gold

Application: Parking Lot

Highlight:

automatic arm barrier system

traffic boom vehicle barrier

two fence boom gate

Basic Infomation

Place of Origin: CHINA

Brand Name: WEJOIN

Certification: CE ISO

Model Number: CB01VF-I

Payment & Shipping Terms

Packaging Details: Carton

Delivery Time: 15 working days after payment received

Payment Terms: T/T

Supply Ability: 10000 sets/month

Gallery

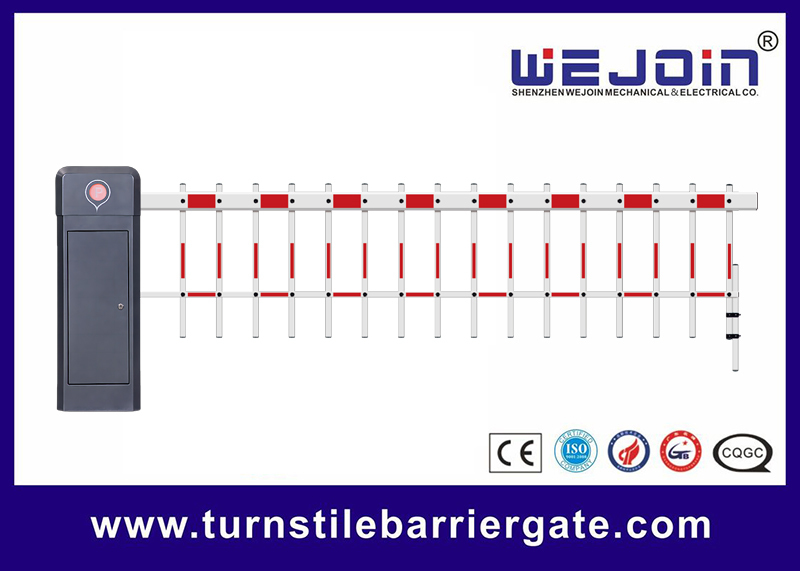

Automatic Arm Barrier System Traffic Boom Vehicle Barrier Gate Two Fence Boom

Product Description

Automatic Arm Barrier System Traffic Boom Vehicle Barrier Gate Two Fence Boom

Vehicle Barrier Gate Technical Data

Model	WJCB01VF-H	WJCB01VF-I
Running Speed	1-4S	2-6S	6S	6S	6S	6S
Boom Type	Straight	Straight	90° Folding	180° Folding	2 Fence	3 Fence
Max Boom Length	4.5M	4M~8M	5M	4M	4.5M	4M
Input Voltage	AC100-265V
Frequency	50/60HZ
Motor Voltage	DC24V
Enclosure Rating	IP54
Working Temperature	-30°C ~ +70°C
MTBF	6000000 times
Traffic Flow Application	24 hours uninterrupted operation
Max Motor Power	240W	180W
Max Motor Speed	500r/min	360r/min
Max Torque	280N.m	320N.m

Vehicle Barrier Gate Functions & Features

1). DC variable frequency control motor drive, equipped with a connecting rod transmission mechanism, a balance spring, stable and reliable operation, motor life up to 6 million times, and spring life 500,000 times.
2). With auto-reversing on obstacle function, the boom will auto reverse when it meets obstacle during the closing process.
3). Bi-direction boom holder design: left-installation and right-installation can be exchanged easily and quickly.
4). Manual clutch design: when power-of, turn the handwheel a little, then move the boom by hand.
5). Double tension spring crank transmission design, for more stable and reliable structure.
6). No limit switch design, accurate encoder detection, detecting boom position when power on. And open/close speed is adjustable.
7). More sensitive and reacting faster when reversing on obstacles.
8). With counting, delay auto-closing, and auto-aging test function.
9). 4-digit digital tube display, displays more information.
10). NO/NC wire control signal input are optional.
11). Integrated RS485 communication, infrared photocell and loop detector interface. RJ45 network, loop detector, and radar module can be added.

Barrier Fence Boom Installation

Step 1. Fix the boom fixing plate on boom with 2pcs of M12*70mm hexagon screw.

Step 2. Hold the fixing plate by hand, then lift up the boom vertically and install it on the boom holder. And then install the flat washer, spring washer, and M12 nut on the screw in turn, and fix the screw with a wrench.

Step 3. Fix the U-connecting unit to the cone axis on barrier with screw.

Step 4. Fix the bottom fence to the U-connecting unit, then release the 2pcs screw of the unit and adjust them to make the fence be perpendicular to the ground.

Automatic Arm Barrier System Traffic Boom Vehicle Barrier Gate Two Fence Boom 0
