Home /Products/Automatic Barrier Gate/Strong Durable and Affordable 6m Telescopic Straight Arm for Automatic Arm Barrier System

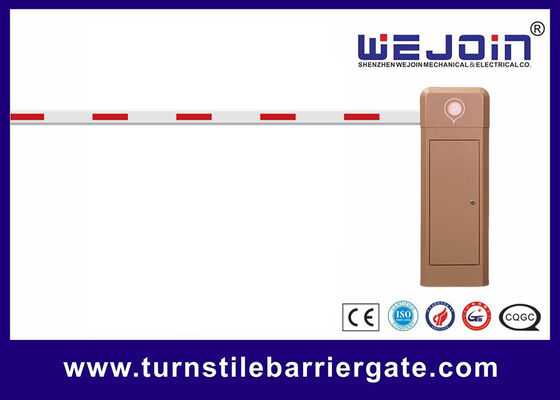

Strong Durable and Affordable 6m Telescopic Straight Arm for Automatic Arm Barrier System

50 set
MOQ
negotiation
Price
Strong Durable and Affordable 6m Telescopic Straight Arm for Automatic Arm Barrier System
Features Gallery Product Description Request A Quote
Features
Specifications
Boom Type: Straight Boom
Voltage: AC 110V-265V
Boom Length: Max 6M (customized)
Warranty: 2 Year
Housing Color: Gold
Application: Parking Lot
Highlight:

6m telescopic barrier gate arm

,

durable automatic barrier arm

,

affordable telescopic gate arm
Basic Infomation
Place of Origin: CHINA
Brand Name: WEJOIN
Certification: CE ISO
Model Number: CB01VF-I
Payment & Shipping Terms
Packaging Details: Carton
Delivery Time: 15 working days after payment received
Payment Terms: T/T
Supply Ability: 10000 sets/month
Product Description

Strong Durable and Affordable 6m Telescopic Straight Arm for Automatic Arm Barrier System


Vehicle Barrier Gate Technical Data

  • Model: WJCB01VF-H, WJCB01VF-I

  • Running Speed: 1-4S, 2-6S

  • Boom Type: Straight, 90° Folding, 180° Folding, 2 Fence, 3 Fence

  • Max Boom Length: 8M

  • Input Voltage: AC100-265V

  • Frequency: 50/60HZ

  • Motor Voltage: DC24V

  • Enclosure Rating: IP54

  • Working Temperature: -30°C ~ +70°C

  • MTBF: 6,000,000 times

  • Traffic Flow Application: 24 hours uninterrupted operation

  • Max Motor Power: 240W, 180W

  • Max Motor Speed: 500r/min, 360r/min

  • Max Torque: 280N.m, 320N.m


Vehicle Barrier Gate Functions & Features
1). DC variable frequency control motor drive, equipped with a connecting rod transmission mechanism, a balance spring, stable and reliable operation, motor life up to 6 million times, and spring life 500,000 times.
2). With auto-reversing on obstacle function, the boom will auto reverse when it meets obstacle during the closing process.
3). Bi-direction boom holder design: left-installation and right-installation can be exchanged easily and quickly.
4). Manual clutch design: when power-of, turn the handwheel a little, then move the boom by hand.
5). Double tension spring crank transmission design, for more stable and reliable structure.
6). No limit switch design, accurate encoder detection, detecting boom position when power on. And open/close speed is adjustable.
7). More sensitive and reacting faster when reversing on obstacles.
8). With counting, delay auto-closing, and auto-aging test function.
9). 4-digit digital tube display, displays more information.
10). NO/NC wire control signal input are optional.
11). Integrated RS485 communication, infrared photocell and loop detector interface. RJ45 network, loop detector, and radar module can be added.

Controller Interface Explanations

Item

Explanation

Wire Control Interface

This interface is available for parking system, also available for external controller to control barrier gate.

UP: Short circuit “UP” and “GND”

Down: Short circuit “Down” and “GND”

Stop: Short circuit “Stop” and “GND”

Anti-smashing Interface

Infrared Photocell: boom will lift up when short circuiting “Infrared photocell interface” and “GND”  during boom down.

Loop Detector: boom will lift up when short circuiting “loop detector interface” and “GND” during boom down; in up limit position, boom will fall down automatically after these two interfaces disconnected.


Strong Durable and Affordable 6m Telescopic Straight Arm for Automatic Arm Barrier System 0
