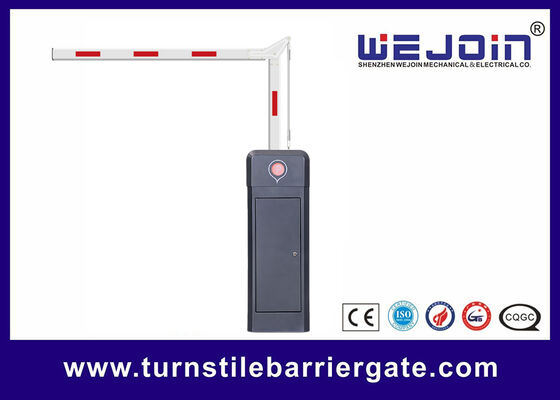

100% Duty Cycle Nice electromechanical 5m 90 Degree Folding Arm for High-Grade Residential Area

50 set
MOQ
negotiation
Price
100% Duty Cycle Nice electromechanical 5m 90 Degree Folding Arm for High-Grade Residential Area
Features Gallery Product Description Request A Quote
Features
Specifications
Boom Type: Straight Boom / Floding Boom
Voltage: AC 110V-265V
Boom Length: Max 6M (customized)
Warranty: 2 Year
Housing Color: Gold
Application: Parking Lot
Highlight:

5m folding arm barrier gate

,

90 degree electromechanical gate arm

,

residential automatic barrier gate
Basic Infomation
Place of Origin: CHINA
Brand Name: WEJOIN
Certification: CE ISO
Model Number: CB01VF-I
Payment & Shipping Terms
Packaging Details: Carton
Delivery Time: 15 working days after payment received
Payment Terms: T/T
Supply Ability: 10000 sets/month
Product Description

100% Duty Cycle Nice electromechanical 5m 90 Degree Folding Arm for High-Grade Residential Area




Barrier Gate Controller Interface Explanations

Item

Explanation

Wire Control Interface

This interface is available for parking system, also available for external controller to control barrier gate.

UP: Short circuit “UP” and “GND”

Down: Short circuit “Down” and “GND”

Stop: Short circuit “Stop” and “GND”

Anti-smashing Interface

Infrared Photocell: boom will lift up when short circuiting “Infrared photocell interface” and “GND”  during boom down.

Loop Detector: boom will lift up when short circuiting “loop detector interface” and “GND” during boom down; in up limit position, boom will fall down automatically after these two interfaces disconnected.

RS485 Communication Interface

It is used for controlling the barrier gate or checking the status of the barrier gate by computer or system; also used for online controlling the paired barrier gates synchronously.

DC12V Power Output

Provide 1A current output, available for radar or small light strips.


Boom Barrier Gate Functions & Features

1. DC variable frequency control motor drive, equipped with connecting rod transmission mechanism, balance spring, stable and reliable operation, motor life up to 6 million times, spring life 500,000 times.

2. With auto-reversing on obstacle function, the boom will auto reverse when it meets obstacle during the closing process.

3. Support external radar, coil, infrared anti-smashing function, built-in DC 12V power output, can be used for external radar power supply.

4. Support RS485 communication or RS485 off-line connection.

5. Optional Bluetooth module, convenient debugging of barriers through small programs.

6. Large LCD screen display, English visual menu, easy function selection and debugging.

7. Left-installation and right-installation can be changed.


Vehicle Barrier Gate Technical Data

  • Model: WJCB01VF-H, WJCB01VF-I

  • Running Speed: 1-4S, 2-6S

  • Boom Type: Straight, 90° Folding, 180° Folding, 2 Fence, 3 Fence

  • Max Boom Length: 8M

  • Input Voltage: AC100-265V

  • Frequency: 50/60HZ

  • Motor Voltage: DC24V

  • Enclosure Rating: IP54

  • Working Temperature: -30°C ~ +70°C

  • MTBF: 6,000,000 times

  • Traffic Flow Application: 24 hours uninterrupted operation

  • Max Motor Power: 240W, 180W

  • Max Motor Speed: 500r/min, 360r/min

  • Max Torque: 280N.m, 320N.m

100% Duty Cycle Nice electromechanical 5m 90 Degree Folding Arm for High-Grade Residential Area 0
