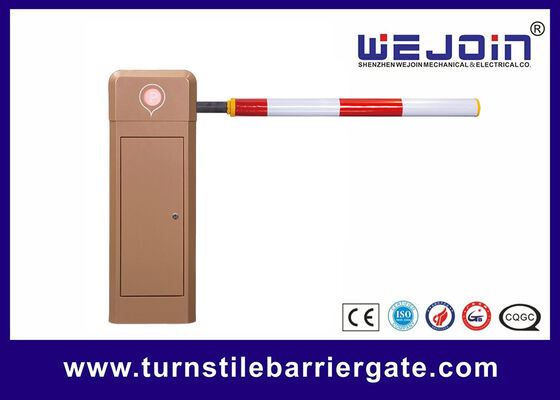

WEJOIN Straight Boom DC Variable Frequency Barrier Gate with 6 Million Cycles Lifespan and Adjustable Speed 1-4s

The S20 Series CB01VF-H is an industrial-grade DC variable frequency barrier gate built for standard vehicle access control scenarios. Powered by a high-efficiency DC variable frequency motor with linkage transmission and balance spring structure, it delivers stable, low-noise operation with a rated motor lifespan of over 6 million cycles.

It comes standard with obstacle rebound function, which automatically lifts the boom when resistance is detected during closing to avoid vehicle collision and equipment damage. It supports external radar, loop coil and infrared anti-crush devices, with a built-in DC 12V 1A power output for powering external accessories.

Boom speed is adjustable from 1s to 4s to adapt to different traffic volumes. It supports left/right interchangeable mounting and is equipped with an LCD display with visual menu for easy on-site debugging. With an operating temperature range of -30℃ to 70℃ and AC 100-265V wide voltage input, it adapts to various indoor and outdoor environments worldwide.

Ideal for standard lane entrances of commercial parking lots, industrial parks, office buildings and logistics yards.

• DC variable frequency control motor drive, equipped with connecting rod transmission mechanism, balance spring, stable and reliable operation, motor life up to 6 million times, spring life 500,000 times
• More sensitive and reacting faster when reversing on obstacles
• With counting, delay auto-closing, and auto-aging test function
• Large LCD screen display, English visual menu, easy function selection and debugging
• NO/NC wire control signal input is optional
• Integrated RS485 communication, infrared photocell, and loop detector interface. RJ45 network, loop detector, and radar module can be added
