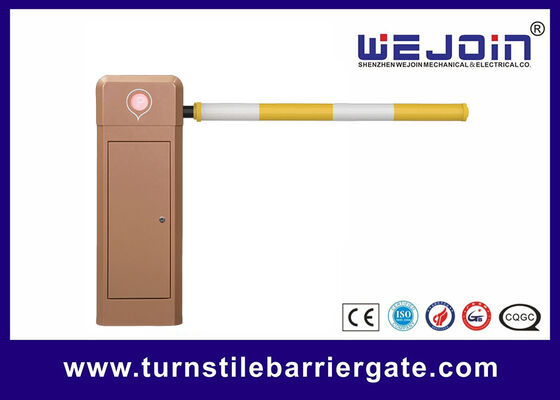

S20 Series High-Speed DC Variable Frequency Barrier Gate with Adjustable Speed 1-4s and 6 Million Cycles Lifespan

Optimized for high-traffic access scenarios, the S20 Series CB01VF-H high-speed barrier gate provides adjustable boom speed from 1s to 4s, significantly improving vehicle throughput and reducing queuing time at busy entrances.

The precision-controlled DC variable frequency motor ensures smooth acceleration and deceleration without harsh impact, even at high operating speeds, with a rated lifespan of over 6 million cycles. It retains all standard safety features including obstacle rebound, external anti-crush compatibility and vehicle loop detection.

It supports RS485 communication for centralized management and system integration, and comes with an LCD debugging menu and ≥30m remote control. Ideal for high-flow commercial parking lots, highway toll stations, airport access roads and commercial centers with heavy peak-hour traffic.

• DC variable frequency control motor drive, equipped with connecting rod transmission mechanism, balance spring, stable and reliable operation, motor life up to 6 million times, spring life 500,000 times
• More sensitive and reacting faster when reversing on obstacles
• With counting, delay auto-closing, and auto-aging test function
• Large LCD screen display, English visual menu, easy function selection and debugging
• NO/NC wire control signal input is optional
• Integrated RS485 communication, infrared photocell, and loop detector interface. RJ45 network, loop detector, and radar module can be added
• Left-installation and right-installation can be changed
