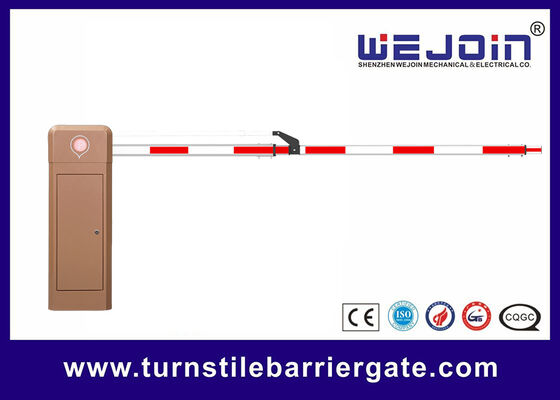

CB01VF-I Series DC Variable Frequency Barrier Gate with 6 Million Cycles Lifespan and 8M Boom Length

Designed for two-lane or extra-wide lane entrances, the S20 Series CB01VF-I synchronized barrier gate system utilizes RS485 master-slave communication to achieve accurate simultaneous opening and closing of two gate units.

Each individual gate unit adopts a DC variable frequency motor with a rated lifespan of over 6 million cycles, ensuring consistent and synchronized performance on both lanes. Both units are equipped with independent obstacle rebound function and anti-crush interfaces for separate safety protection.

Left-right interchangeable mounting allows flexible layout according to site conditions. The system supports connection with license plate recognition systems and parking management platforms. Applied to dual-lane entrances of large industrial parks, shopping mall parking lots and toll plazas requiring coordinated traffic control.

• DC variable frequency control motor drive, equipped with connecting rod transmission mechanism, balance spring, stable and reliable operation, motor life up to 6 million times, spring life 500,000 times
• More sensitive and reacting faster when reversing on obstacles
• With counting, delay auto-closing, and auto-aging test function
• Large LCD screen display, English visual menu, easy function selection and debugging
• Integrated RS485 communication, infrared photocell, and loop detector interface. RJ45 network, loop detector, and radar module can be added
• Left-installation and right-installation can be changed

• Working temperature (motor): -30℃~ + 70℃
• Power supply input voltage: AC110±10%, or AC220V±10%
• Controller input voltage: DC24V±10%, 10A
• Motor power: 240W MAX
• Relative Humidity: 30%~80%, No condensation
• Distance of remote control: L≥30M
• Running Speed: 2~6 seconds adjustable
• MTBF: 6,000,000 times
