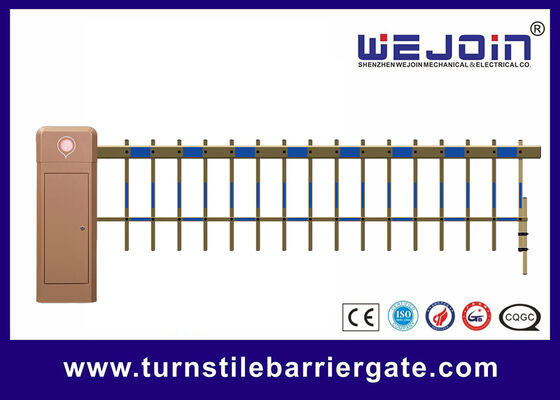

Super-Capacitor Backup DC Variable Frequency Automatic Barrier Gate with 6 Million Cycles Lifespan

Equipped with an optional super-capacitor backup power module, the S20 Series CB01VF-I backup barrier gate automatically opens the boom when input voltage drops below the preset threshold, guaranteeing unobstructed emergency passage during unexpected power outages.

Under normal power supply, it operates as a standard DC variable frequency barrier gate with 2-6s adjustable boom speed, over 6 million cycle motor life, obstacle rebound function and full anti-crush compatibility.

Low-voltage action threshold and delay time can be configured via the controller menu. It supports AC 100-265V input and works stably in -30℃ to 70℃ environments.

Mandatory for fire escape lanes, hospital entrances, government facilities and areas without stable backup power supply.

• DC variable frequency control motor drive, equipped with connecting rod transmission mechanism, balance spring, stable and reliable operation, motor life up to 6 million times, spring life 500,000 times
• With auto-reversing on obstacle function, the boom will auto reverse when it meets obstacle during the closing process
• With counting, delay auto-closing, and auto-aging test function
• Large LCD screen display, English visual menu, easy function selection and debugging
• Integrated RS485 communication, infrared photocell, and loop detector interface. RJ45 network, loop detector, and radar module can be added
• Left-installation and right-installation can be changed

• Working temperature (motor): -30℃~ + 70℃
• Power supply input voltage: AC110±10%, or AC220V±10%
• Controller input voltage: DC24V±10%, 10A
• Motor power: 240W MAX
• Relative Humidity: 30%~80%, No condensation
• Distance of remote control: L≥30M
• Running Speed: 2~6 seconds adjustable
• MTBF: 6,000,000 times
