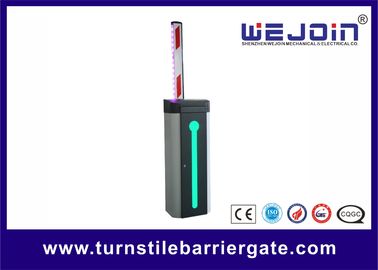

Automatic Car Park Barrier Gate with Protective Rubber and LED Traffic Light Boom
Barrier gate WJDZ120 Quick Detail
|
Name |
Barrier Gate |
Application |
Parking System |
|
Speed |
3/6 second |
Feature |
Manual release |
|
Rated Power |
80W |
Certificate |
CE, ISO, SGS |
|
Net Weight |
60KG |
Voltage |
AC220V, AC110V |
Description:
Model Selection and Differences
|
Model Item |
WJDZ12013 |
WJDZ12016 |
|
Opening Time |
3S |
6S |
|
Boom Type |
Straight, square-shaped |
|
|
Boom Length |
3M |
4M |
|
Voltage |
110V/220V |
|
|
Motor/Power |
AC/120W |
|
|
Working Temperature |
-35℃ - 75℃ |
|
|
Protection Grade |
IP44 |
|
|
Remote Control Distance |
30M~100M |
|
Functions & Features:
1. Manual release device to operate the barrier when power failure
2. Barrier motor with die-casting aluminum alloy is high-hermetic and easy for heat dissipation
3. Motor cooling fan to avoid the over-heating possibility
4. Automatic reversing when the barrier boom meets the obstruction
5. Auto closing realization through menu setting on the control panel
6. The barrier works well with infrared photocells, loop detectors, card readers, ticket dispensers, manual switch (wire control), and traffic light
7. RS485 Communication Module is compatible
8.Special art and craft makes out the most modernized and fashionable housing
9.Safety photo electricity limit switch
10. Auto warming-up, suitable for cold environment
11. Boom with LED light (color is changeable with remote control)
12. Cabinet with traffic light
Applications
Barrier Gate with aluminum alloy housing screen uses the third generation motor. It is stable and has long
service life performance, running one million times. And the barrier can work with parking system very well,
and can be used in door and outdoor.
