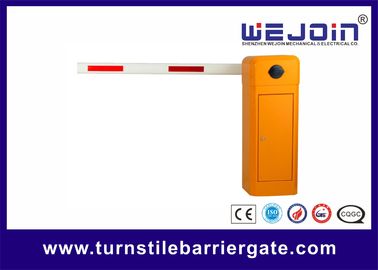

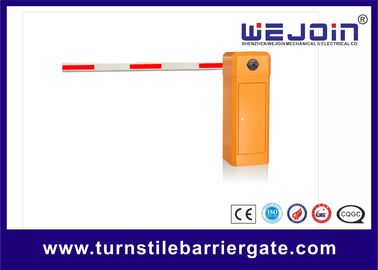

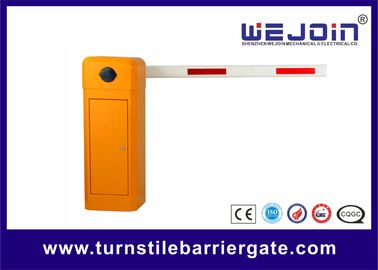

Safety Electronic Straight Parking Barrier Gate Car Park Barrier Arms Customized

Basic Information
Place of Origin: CHINA
Brand Name: WEJOIN
Certification: CE ISO SGS
Model Number: WJDZ102
Minimum Order Quantity: 1 set
Price: 370USD-495USD
Packaging Details: carton
Delivery Time: 3-7days
Payment Terms: T/T, Western Union
Supply Ability: 10000 sets/month
Detail Information
Motor Material: Die-casting Aluminum Alloy Boom Option: Straight Boom
Highligh Feature: Safety Optional Control: Yes
Operation Time: 1s, 1.8s, 3s,6s Customized Product: Yes
Max Arm: 6m Trade Terms: EXW,FOB,CIF
High Light:

parking lot arm gate


auto barrier gate system

Product Description

Safety Electronic Straight Barrier Gate Car Park Barrier Arms Customized
Our company is the professional manufacture of automatic barrier gates, tripod turnstile gates, swing barrier gates, flap barrier gates, parking lock, full height turnstile gates, etc. We sell our products to abroad many years and won the best feedback from our customers. Now our company has updated our production line, and our production capacity has reached to10000 sets/month. We can offer quick delivery time and exchange of spare parts as many company required. Our products can be compatible with many car parkingsystems, and we also have LED Light series barrier gates, fast speed barrier gates(1s and 1.8s), this is our the strong point that other manufacture can never compete. We also have the telescopic arm for our 6m barrier gates for easy transportation.
Our Services:
1. Professional and good after sale service and prompt replies will be done within 24 hours(working days).
2. Customized products will make your products stand our from others have your own style.
3. Strict quality control to ensure raw materials to final package before delivery are up to standard.
4. Professional products line meets customers' small order demands.
5. Competitive prices, high-efficiency & outstanding managements make production costs down.
6. Min order is one set, welcome to order our sample for testing and visiting our company!
Quick Detail:


High Speed Barrier Gate


Highway toll




Manual release

Rated Power




Net Weight



AC220V, AC110V

Functions And Features

Advanced manual clutch; Auto reset when power on.

Both compression spring and extension spring are suitable for the motor.
The compression spring can avoid the accidents by caused by broken spring due to the great force.

Remote controllers control boom rising, failing and pausing.

Reversing on obstacle.

Infrared photocell for safety access(optional)

Support for the external and internal vehicle loop detector(optional)

Interface for opening, closing and stop, can connect to many access control systems

Rs485 communication module to connect to the computer to know more information about the access.

Traffic light interface

Wire control(Switch signal)/remote control 220MHZ

Model Selection and Differences


Model No. Open/Close Speed Max Boom Length Boom Type
WJDZ10216 6 seconds 6m Straight boom
WJDZ10213 3 seconds 4.5m Straight boom
WJDZ10211 1 second 3m Straight boom





Working Temperature



220V±10%, 110V±10%, 50/60HZ

Rated power


Relative humidity


Remote control distance


Net weight




Max boom length

3 meters


Why to choose WEJOIN High Speed Barrier Gate?


1. High Speed Barrier Gate adopts special machine core, swing away boom holder and boom. This barrier gate runs

in high speed but stably. The running time is 1 second. It can be used for highway toll.


2. High Speed Barrier Gate uses swing away boom holder. The boom is out of the holder when it is hit, which protects

the barrier core and prolong lifetime of the barrier.


3. High Speed Barrier Gate uses the first generation motor. It is stable and has long service life performance, running

3 million times. Its housing is made of galvanized steel with 1.5mm thickness, and painted, so that the barrier can be

used in door and outdoor.


4. The barrier core is special and main parts are aluminum alloy casting. The barrier gate will automatically reverse when

the boom meets the obstruction. The barrier works well with infrared photocells, loop detectors, the boom will

automatically rise up when it meets pedestrian and vehicles. Manual release device can operate the barrier when

power failure.


5. WEJOIN produce and process almost accessories. Besides standard producing, we offer OEM service in the


Safety Electronic Straight Parking Barrier Gate Car Park Barrier Arms Customized 0Safety Electronic Straight Parking Barrier Gate Car Park Barrier Arms Customized 1
