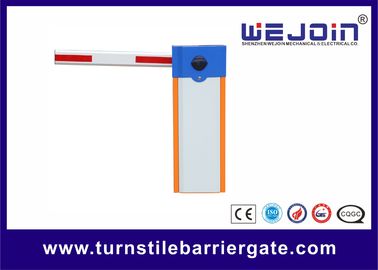

Heavy Duty Entry-Exit Parking Barrier Gates Access Control System Automatic Barrier
Parking Barrier Gate Functions:
Machine core with compression spring effectively avoids the accidents caused by spring broken.
Die-casting aluminum alloy motor, precision, and good at thermal radiating.
Motor cooling fan, solving the problem of heat-protection
Double safety limit switches(photoelectricity limit switch/ motor memory sensor)
reversing on obstacle
Auto-closing
Support the infrared photocell for anti-bumping(optional)
Support for the external and internal vehicle loop detector
traffic light interface
wire control(switch signal)/remote control(418Hz)
RS485 communicational module to realize the intelligent management for the passing
Parking Barrier Gate Technical Data:
Model No. (WJDZ) |
Open/Close Speed |
Max Boom Length |
Boom-Type |
101-16 |
6 sec |
6m |
straight boom |
101-13 |
3 sec |
4.5m |
straight boom |
101-118 |
1.8 sec |
4m |
straight boom |
101-11 |
1 sec |
3m |
straight boom |
101-26 |
6 sec |
5m |
90 degree, Articulated boom |
101-23 |
3 sec |
3m |
90 degree, Articulated boom |
101-36 |
6 sec |
5m |
180 degree, Articulated boom |
101-33 |
3 sec |
3m |
180 degree, Articulated boom |
101-46 |
6 sec |
4.5m |
Two-level, fence boom |
101-56 |
6 sec |
4m |
Three-level, fence boom |
Parking Barrier Gate Technical Data:
Working Temperature |
-35℃~+85℃ |
Input Voltage |
220V±10%, 110V±10% |
Frequency |
50/60HZ |
Motor Voltage |
AC220V/110V |
Motor Power |
80W |
Protection grade |
IP54 |
MTBF |
5000000 times |
Our Services:
1. Professional and good after-sale service and prompt replies will be done within 24 hours(working days).
2. Customized products will make your products stand out from others to have your own style.
3. Strict quality control to ensure raw materials to the final package before delivery is up to standard.
4. The professional product line meets customers' small order demands.
5. Competitive prices, high-efficiency & outstanding managements make production costs down.
6. Min order is one set, welcome to order our sample for testing and visiting our company!
Motor Drawing
