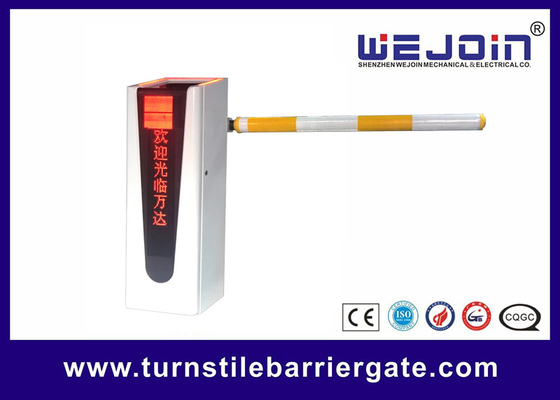

DC Brushless Motor Parking Garage Barrier 0.9s 90r/ Min For High Traffic

Basic Information
Place of Origin: CHINA
Brand Name: WEJOIN
Certification: CE ISO SGS
Model Number: G20
Minimum Order Quantity: 1 set
Price: negociate
Packaging Details: carton
Delivery Time: 3-5 working days
Payment Terms: T/T, Western Union
Supply Ability: 10000 sets/month
Detail Information
Motor Material: Aluminum Alloy Operating Time: 0.4S~0.9s
Boom Type: LED Boom Color: White
Application: For Enterprises And Institutions Warranty: 1 Year
High Light:

DC Motor Parking Garage Barrier

,

Brushless Motor Parking Garage Barrier

,

90r/ Min Parking Barrier Arm Gate


Product Description

Commercial DC Brushless Motor Parking Barrier Gate for High Traffic



Parking Barrier Gate Technical Data:

Model

WJCB02E

Running Speed

0.6S~2s

Boom-Type

Carbon Steel Straight

Max Boom Length

3m~3.5m

Input Voltage

AC 220V±10%, AC110V±10%

Motor Voltage

DC24V

Enclosure Rating

IP54

Working Temperature

-35°C~+85°C

MTBF

10000000 times

Duty Cycle

100%

Traffic Flow Application

24 hours uninterrupted operation

Max Motor Power

300W

Max Motor Speed

90r/min

Max Torque

480N.m



Parking Barrier Gate Features:

1.DC permanent magnet synchronous motor(PMSM), servo control.

2.Superior performance, equivalent to the main motor of the CNC machine tool and the electric vehicle motor, it has high control precision, high torque density, good torque balance, low power consumption, high efficiency, less heat, and low noise.

3.Bi-direction boom holder design: left-installation and right-installation can be exchanged easily and quickly.

4.Electronic clutch design: more convenient to unlock or lock the motor when power off. (patented technology)

5. Three tension spring crank transmission design, for a more stable and reliable structure. (patented technology)

6.No limit switch design, accurate encoder detection, detecting boom position when power on. And open/close speed is adjustable.

7.More sensitive and reacting faster when reversing upon obstacles.

8.With counting, delay auto-closing, auto-aging test, alarm when lifting boom without permission, motorcade passing function.

9.LCD display controller, more humanized operation and setting.

10.NO/NC wire control signal input is optional.

11.Integrated RS485 communication, RJ45 network, infrared photocell, loop detector interface, radar module, and more secondary development.



Parking Barrier Gate Warranty and Service Items

Free service is oFFered for component parts in one year warranty time.

(not includes the barrier boom or remote)

Lifetime service with charge accordingly.

Technical questions are supported.
