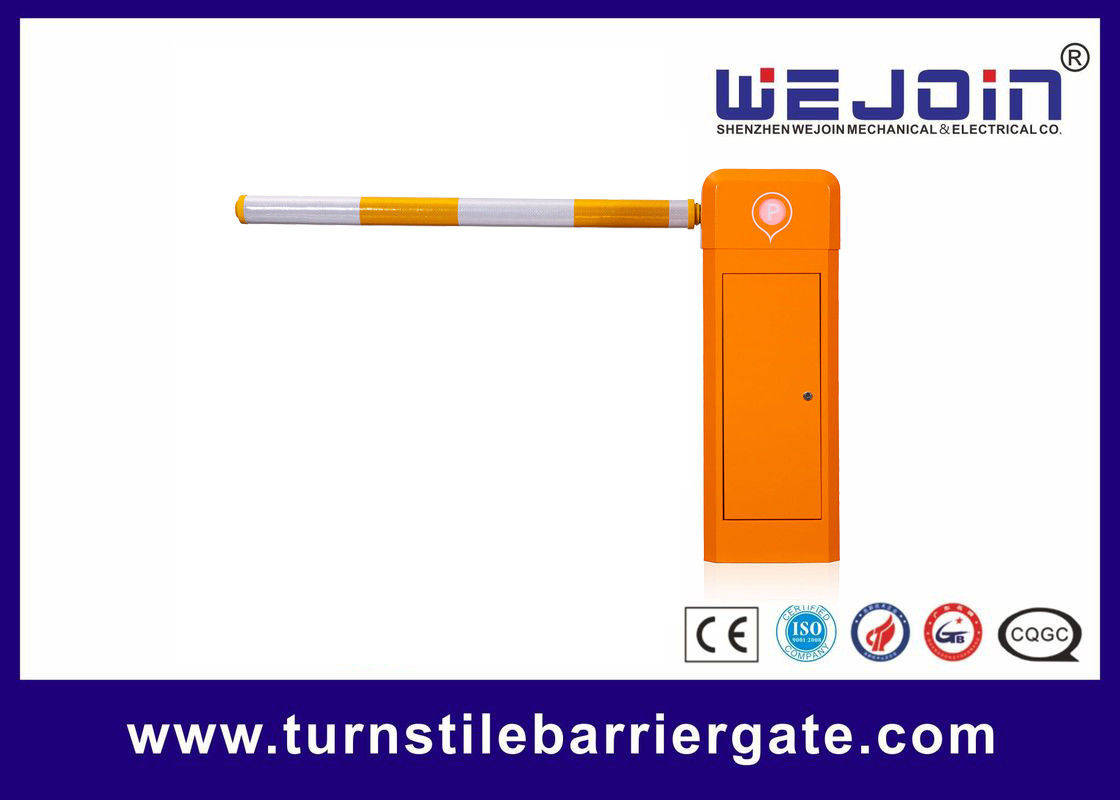

Automatic car barrier drop-arm barrier gate remote control packing barrier
Vehicle Barrier Gate Quick Detail:
The technology is applied to drive motor of electric vehicle and spindle motor of CNC lathe.
# Strong moment, high precision control, low temperature rise
# Standard traffic lights
# 1-2s/3-5s speed adjustable
# gold, black and orange color optional
Vehicle Barrier Gate Brief Introduction:
This is our newly-produced DC servo barrier gate, which utilizes the updated electronic control technology and machinery processing technology, no limit switch design, to realize non-adjust of mechanism, adjustable speed, automatic speed reduction, ext. In this way, make the barrier operate more steadily and more reliably. This product is highlighted in frequency applications and longer lifetime.
Vehicle Barrier Gate Functions & Features
1). DC permanent magnet synchronous motor(PMSM), servo control.
2). The motor has the same performance as the main motor of the CNC machine tool and the electric vehicle motor, it has high control precision, high torque density, good torque balance, low power conaumption, high efficiency and low noise.
3). Bi-direction boom holder design: left-installation and right-installation can be exchanged easily and quickly.
4). Manual clutch design: when power-of, turn the handwheel a little, then move the boom by hand.
5). Double tension spring crank transmission design, for more stable and reliable structure.
6). No limit switch design, accurate encoder detection, detecting boom position when power on. And open/close speed is adjustable.
7). More sensitive and reacting faster when reversing on obstacles.
8). With counting, delay auto-closing, and auto-aging test function.
9). 4-digit digital tube display, displays more information.
10). NO/NC wire control signal input are optional.
11). Integrated RS485 communication, infrared photocell and loop detector interface. RJ45 network, loop detector, and radar module can be added.
Vehicle Barrier Gate Technical Data
Model |
WJCB01SV-H |
WJCB01SV-I |
||||
Running Speed |
1/1.5/2S |
3/4/5S |
5S |
5S |
5S |
5S |
Boom Type |
Straight |
Straight |
90° Folding |
180° Folding |
2 Fence |
3 Fence |
Max Boom Length |
3.5M~4.5M |
4.5M~6M |
5M |
4M |
4.5M |
4M |
Input Voltage |
AC220V±10%, AC110V±10% |
|||||
Frequency |
50/60HZ |
|||||
Motor Voltage |
DC310V |
|||||
Enclosure Rating |
IP54 |
|||||
Working Temperature |
-35°C ~ +85°C |
|||||
MTBF |
6000000 times |
|||||
Traffic Flow Appication |
24 hours uninterrupted operation |
|||||
Max Motor Power |
150W |
|||||
Max Motor Speed |
36r/min |
|||||
Max Torque |
240N.m |
