| Place of Origin: | China |
|---|---|
| Brand Name: | WEJOIN |
| Certification: | CE, ISO, |
| Model Number: | WJDZ102 |
| Minimum Order Quantity: | 1set |
| Price: | negotiation |
| Packaging Details: | Export Wooden Case |
| Delivery Time: | 3-15 days depending on the quantity |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 1, 000 set/month |
| Voltage: | 110v 220v | Motor: | Ac |
|---|---|---|---|
| Power: | 80w | Protection Grade: | IP44 |
| Boom Type: | Srtaight | ||
| High Light: | Srtaight Boom Intelligent Barrier Gate,AC Motor Intelligent Barrier Gate,120 Watt Automatic Parking Barrier |
||

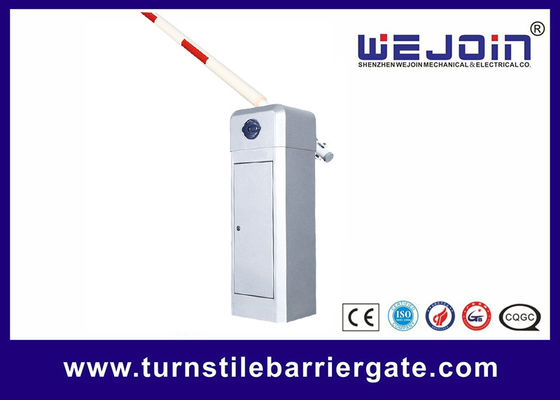

LED Boom Vehicle Barrier Gate / Automatic Car Park Barriers For Supermarket
Applications:
Barrier Gate with LED boom is installed with LED boom, and traffic light on the housing. When the boom rises up, the light turns green; when the boom falls down, the light turns red. Beside the LED, the boom is also installed with rubber below, which not only indicates the transit situation, but also protect vehicle from hitting.
Quick Detail:
Name: Bi-directional Barrier Gate
Application : Parking System
Speed:3/6 second
Feature: Manual release
Rated Power:120W
Certificate:CE, ISO,
Net Weight:45KG
Voltage:AC220V, AC110V
Communication with customers
Q: What's WEJOIN monthly production capacity for barrier gate?
A: 10000 units.
Q: As for the over-heating problem of barrier gate
A: WEJOIN barrier gate has motor cooling fan which can solve the problem of over heating-protection. WJDZ601 and WJDZ701 don't have motor cooling fan, but the aluminum alloy housing of WJDZ601 can make the heat radiate quickly, and there’re shutters on the housing to let wind in.
Q: Sometimes, Why the barrier boom would open automatically?
A: Please check if the limit switch is on the right position; if not, please adjust the Limit Switch. Please refer to last page of Barrier Gate Manual. Or you can adjust the adjusting screw. And the last step is to check the intensity of the spring.
Q: What’s the remote control distance?
A: In general, most of WEJOIN 418 remote control can cover 100 meters, but it is not safe and stable to control the barrier gate from 100 meters away. WEJOIN recommends using the remote control within 30 meters or 50 meters.
Specifications
|
Model |
WJDZ102 |
|
Working Temperature |
-40℃～+75℃ |
|
Voltage |
220V±10%, 110V±10%, 50/60HZ |
|
Rated power |
80W |
|
Relative humidity |
≤90% |
|
Remote control distance |
≥30m |
|
Net weight |
45kgs |
|
Speed |
3S, 6S |
|
Max boom length |
6 meters |
