RS485 Communication Interface For Barrier Gates With Bi-Directional Movement

1 PCS
MOQ
negotiation
Price

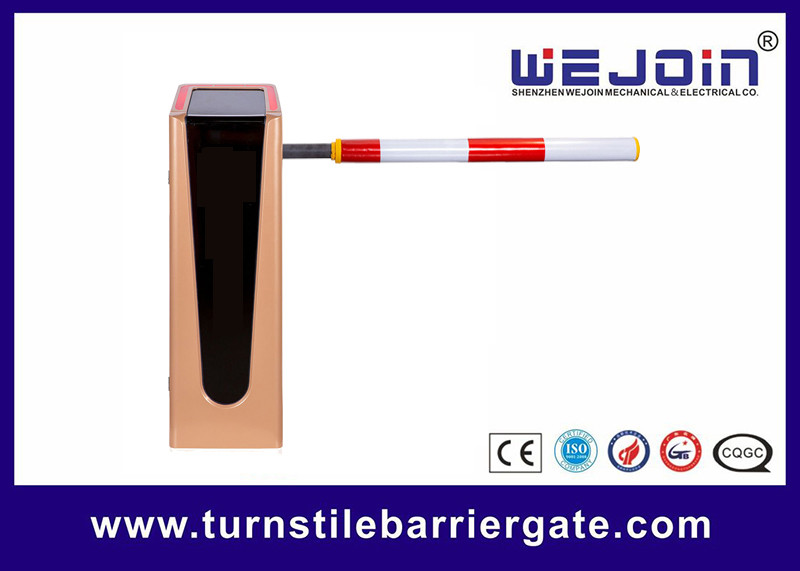

RS485 Communication Interface For Barrier Gates With Bi-Directional Movement
Features Gallery Product Description Request A Quote
Features
Specifications
Barrier Arm Type: Carbon Fiber Round Arm
Motor: DC Brushless Motor
Power Supply: AC220V/110V
Barrier Arm Length: 3-4m
Barrier Arm Movement: Bi-direction
Communication Interface: RS485, RJ45
Opening/Closing Time: 0.6s-1s
Control Mode: Remote Control
Highlight:

RS485 Communication Interface Barrier Gates

,

Bidirectional Movement Barrier Gates

,

AC110V Swing Barrier Gate

Basic Infomation
Place of Origin: China
Brand Name: WEJOIN
Certification: CE FCC
Model Number: WJCB02VF-E
Payment & Shipping Terms
Packaging Details: carton
Delivery Time: 14 working day
Payment Terms: T/T
Supply Ability: 10000 sets/month
Product Description

RS485 Communication Interface For Barrier Gates With Bi-Directional Movement

Product Description:

A Boom Barrier: Restricting Unauthorized Entries & Traffic Overflow

A boom barrier is mainly used to restrict unauthorized persons/vehicles from entering controlled ecnvironments, as well as control the traffic overflow. The arm of the barrier is vertically raised and is usually between 3-4 meters in height. Based on customer needs, the arming can be adjusted, however, the default time of the barrier is 0.6 seconds.



Features:

The self-developed DC24V brushless motor has a stable and reliable worm gear and planetary reduction transmission structure, providing a large torque and wear resistance.

The DC variable-frequency control system provides precise control, more flexible running, less mechanical impact, and a longer service life.

The auto-reversing on obstruction is more sensitive, responsive, safe, and reliable.

The large LCD screen display control panel comes with English visual menu, providing simple maintenance and easy operation.

The 433MHZ Remote Controller is also easy to add to the system.

It's easy to operate during power-off. Turn the handwheel or lift the boom manually to realize the boom up and down, which can also be powered by a DC24V battery or opened one time by a supercapacitor backup.

The motorcade also supports passing, counting, auto-aging test, delay auto-closing, relay signal output, and RS485 communication.

Loop detector, infrared photocell, and radar are optional.

The motor and control board are provided with 2-year warranty period, and 3 months for accessaries.



Technical Parameters:

Running Speed: 0.6s-1s (per second)

Boom Type: Carbon Fiber Round

Boom Length: 3m-4m (meter)

Cabinet Dimension: 405*335*1050MM (millimeters)

Power Supply Input Voltage: AC220V±10%, or AC110V±10% (Alternating Current)

Control Board Input Voltage: DC24V±10%, 10A (Direct Current)

Motor Voltage: DC24V (Direct Current)

Enclosure Rating: IP54 (Ingress Protection)

Working Temperature: -30℃~ + 70℃ (degree Celsius)

MTBF: 10,000,000 times (Mean Time Between Failure)

Duty Cycle: 100%, 24 hours uninterrupted operation

Max Motor Power: 300W (watt)

Max Motor Speed: 500r/min (revolutions per minute)

Max Output Torque: 250N.m (Newton meter)



Applications:

WEJOIN Boom Barrier provides entrance security to all the areas, such as factories, warehouses, corporate offices, residential apartments, parking lots, toll plazas and so on. It can even help to upgrade your security standard. Moreover, it features fast speed up to 0.6s and can be adjustable with precisely control. In addition, there are 6 Barrier lengths available and manual operation in case of power failure. Moreover, unlike other Boom Barriers, WEJOIN Boom Barrier has Battery backup and secure infrared photocell safety system that can prevent any potential injury.

Our Boom Barrier is a perfect choice for all premises security upgrade, and its features make it even more attractive. With different Barrier lengths, you will surely find the one that fits your business need. Moreover, the battery back and secure infrared photocell ensures a secure entrance.



Support and Services:

Automatic Barrier Gate Technical Support and Service

We are committed to providing our customers with the highest quality of service and support for Automatic Barrier Gate. Our experienced and highly trained technical support team is available 24/7 to help you with any questions or concerns you may have.

We provide the following technical support and services:

  • Installation and setup assistance
  • Troubleshooting and repair guidance
  • Software updates and upgrades
  • Product replacement and parts ordering
  • Maintenance and repair service

If you have any questions or need assistance, please contact us at any time.



Packing and Shipping:

Packaging and Shipping

Automatic Barrier Gate is carefully packaged in a box designed to ensure minimal damage during the shipping process. The box is designed to fit the product securely and provide extra protection.

The shipping process begins with items being picked up from our warehouse and loaded onto a truck. The truck then drives to the nearest port, where the items are loaded onto a ship and shipped to the destination. Upon arrival at the destination port, the items are unloaded and delivered to the customer.
