Energy Saving Parking Lot Equipment Automatic Parking Lock , CE ISO Approvals

Basic Information
Place of Origin: China
Brand Name: WEJOIN
Certification: ISO
Model Number: WJCS101
Minimum Order Quantity: 1set
Price: Negotiation
Packaging Details: Carton
Delivery Time: 3-15 days depending on the quantity
Payment Terms: T/T, Western Union
Supply Ability: 1, 000 set/month
Detail Information
OEM/ODM Product: Yes Delivery Time: 3-15days
Operating Time: 4~6s Color: Red, Greay, Blue
Undertaking Weight: 5 Tons Arm Material: Plastic
High Light:

parking reservation lock

,

car park locks


Product Description

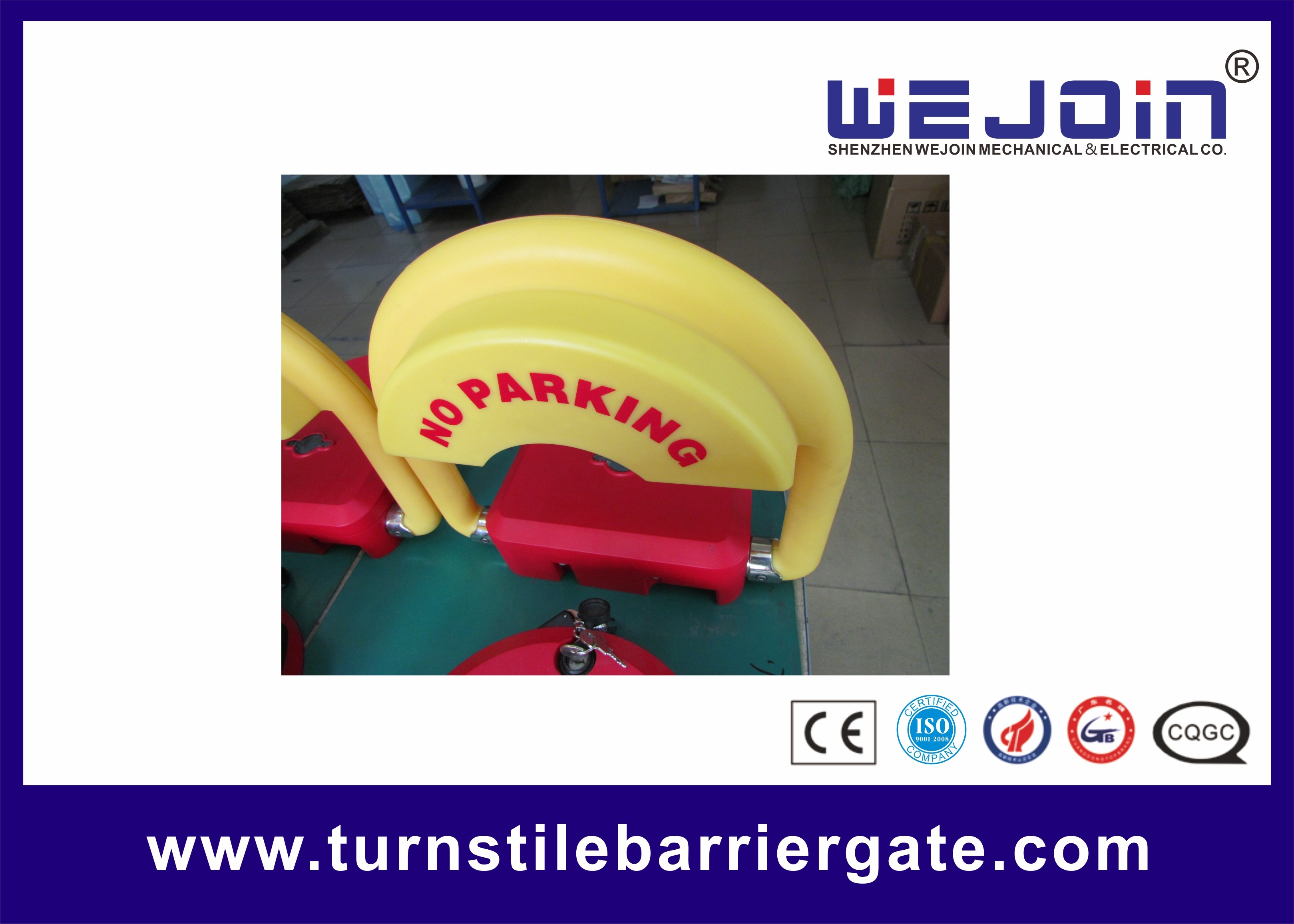

Energy Saving Parking Lot Equipment Automatic Parking Lock , CE ISO Approvals



Parking Space Lock for Remote Control:

The series of parking lock developed by our company is featured by nice appearance, novel structure. easy control, strong function and high security and reliability etc. The parking lock can effectively avoid the misusing or occupation of the parking lock and is a good assistant for parking lock managements of top-grade residential areas,shopping centers, hotels,offices and airports etc.





Specification:



Voltage DC12V Battery DC12, 7Ah
Dimension 357×370×82.5mm Current 0.4A
Running Time 4~6s Extended Height 340mm
Remote Distance ≤15M Working Temperature -35℃~+55℃
Weight Born 5t IP Class IP68



Functions & Features:



1. Energy-saving; the battery is a best product in China and the power in it will last for half a year.

2. Safe; the power connection is anti-disconnecting design in case that the user misplaces the battery causing short circuit; battery installation is easy.

3. Durable; the cabinet is made of die-casted Zinc alloy with high quality, and the maximum weight of load-bearing is 5 tons; the cabinet is coated with varnish, being water-proof and anti-rust in harsh weather. The sway arm is made of fiber-reinforced nylon, and it will not deform even after car crushing.

4. Hermetic; the cabinet is tightly closed, and Protection Grade is IP68. It is waterproof and dustproof. It can be used broadly.

5. Auto-repositioning; the external force could not change the sway arm position when it is vertical; when the sway arm is forced to a horizontal position, it will reposition vertically, unless the user uses remote control to put it horizontally.

6. Noise-free; bearing transmission design of the motor makes almost zero noise. It is beneficial for battery and motor longevity and lesser friction.

7. Burglarproof; the mounting bolts are placed inside of the cabinet. No one can open it without key.

8. Easy Installation: four prepared holes at the bottom of the cabinet makes it easy to install.
