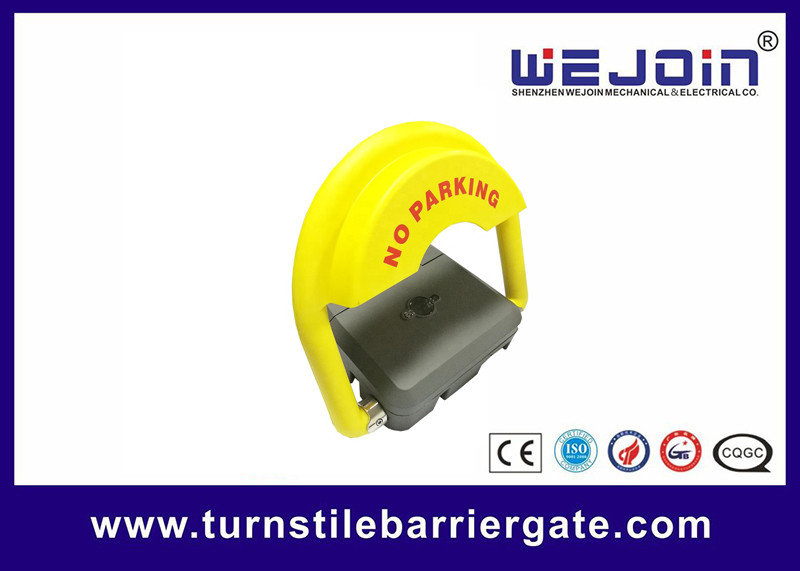

Automatic Remote Control Parking Space Lock 4~6s Operating Time 5 Tons Bearing

1set
MOQ
Negotiation
Price
Automatic Remote Control Parking Space Lock 4~6s Operating Time 5 Tons  Bearing
Features Gallery Product Description Request A Quote
Features
Specifications
MAX Bearing Wieght: 5 Tons
Color: Red, Greay,Blue
OPerating Time: 4~6s
Water Resistant: Yes
IP Grade: 68
Current: 0.4A
Highlight:

automatic parking lock

,

car park locks

,

Parking Space Lock IP68

Basic Infomation
Place of Origin: China
Brand Name: WEJOIN
Certification: ISO,
Model Number: WJCS101
Payment & Shipping Terms
Packaging Details: Carton
Delivery Time: 3-15 days depending on the quantity
Payment Terms: T/T, Western Union
Supply Ability: 1, 000 set/month
Product Description

Automatic Remote Control NO Parking Space Lock Manufacturer



Quick Detail:
1. Name: Parking Lock
2. Protection Grade: IP68
3. Application: Parking System
4. Standard Voltage: DC12V
5. Operational Current: 0.4A
6. Certificate: CE, ISO, SGS
7. Net Weight: 8KG
8. Up to Down Time: 4-6s



Instruction
1. Parking lot lock is used in the indoor and outdoor parking lot
2. Parking locks connect to the server through 4G(default 4G, other Bluetooth, GPRS, 4G, Lora, NB-IoT and other technologies mature, customizable)
3. Parking lock has the function of vehicle detection to obtain the information of whether there is a car parked in the parking space.
4. The background of the system is remote networking to obtain the change of parking space status and whether there is a car parked or not.



Function
1. Collision Alarms Remote control parking lock motors used are low-speed DC drive motor, so the noise is very small when the electricity is too low with a reminder function.
2. Parking lock which has a built-in one hundred and eighty degrees automatic anti-collision alarm reset function, hit the collision, it will not damage the vehicle and not affect the normal use of the parking lock.
3. Parking lock load is relatively light, the use of the worm wheel to prevent rotation can increase the collision alarm remote parking lock service life.
4. Anti-collision alarm remote control parking lock shell is made of aluminum alloy casting, so in addition to the collision with the functional advantages, there are no benefits of rust, the appearance is also beautiful.
5. The use of an advanced spray process for the appearance of the deal, do not fade.
6. The entire remote control parking lock with screws integrated device for easy maintenance and repair treatment.
7. High-strength pressure design can withstand no more than three tons of car rolling, without deformation.
8. The parking lock life, in addition to human damage, under normal circumstances, can be used for ten years.



Specification:

Model

WJCS101

Standard Voltage

DC12V

Battery Voltage

DC12V, 7Ah

Protection Grade

IP68

Extended Height

340MM

Dimension

357*370*82.5MM

Current

0.4A

Max Bearing Weight

5 t

Net weight

9kgs

Running Time

4-6S

Remote control distance

≥30m

Working Temperature

-35℃~+55℃
