6s Running Key Control Parking Lot Lock DC12V 12 Months Warranty

Basic Information
Place of Origin: China
Brand Name: WEJOIN
Certification: CE, ISO,
Model Number: WJCS101
Minimum Order Quantity: 1set
Price: negotiation
Packaging Details: Export Wooden Case
Delivery Time: 3-15 days depending on the quantity
Payment Terms: T/T, Western Union
Supply Ability: 1, 000 set/month
Detail Information
IP Level: 68 Current: 0.4A
Warranty: 12 Months Dimension: 357*370*82.5mm
Running Time: 4~6s Sample Time: 2~5 Business Days
High Light:

Key Control Parking Lot Lock

,

6s Running Parking Lot Lock

,

DC12V Remote Control Parking Lock


Product Description

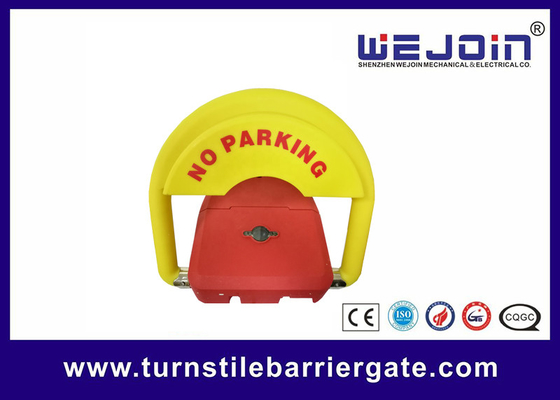

Yellow Parking Reservation Lock 0.4A Parking Lot Equipment DC 12V



Quick Detail:

  • Name: Parking Lock

  • Certificate: CE, ISO,

  • Standard Voltage: DC12V

  • Operational Current: 0.4A

  • Working Temperature:-35℃~+55℃v

  • IP grade: IP68

  • Application: Parking System

  • Protection Grade: IP68



Description:

1. Energy-saving; the battery is the best product in China

2. Using The United States Champion brand battery, with resistant shock, resistant high temperature, small size, good charge, and discharge performance characteristics, theory can be recharged 5000 times. Most energy-using efficient design patterns to achieve the industry's lowest operating current host 0.4A, starting current 0.6A ~ 0.7A, standby current of 0.6mA, thus ensuring once charging using at least once a year.

3. Noise-free: The bearing transmission design of the motor makes almost zero noise. it is beneficial for battery and motor longevity and lesser friction

4. Hermetic: the cabinet is tightly closed, and Protection Grade is IP68. It is waterproof and dustproof. It can be used broadly.

3. Auto-repositioning; the external force could not change the sway arm position when it is vertical; when the sway arm is forced to a horizontal position, it will reposition vertically, unless the user uses a remote control to put it horizontally.

5. Safe: the power connection is anti-disconnecting design in case that the user misplaces the battery causing a short circuit; battery installation is easy.

6. Fixing by Four expansion screws, using internal security design, and the installation location of the host expansion screws inside the shell, only with a key to open the back cover before installation, eliminating the theft risks when parking lock installed outdoors

7. Durable: the cabinet is made of die-casted Zinc alloy with high quality, and the maximum weight of load-bearing is 5 tons; the cabinet is coated with varnish, being water-proof and anti-rust in harsh weather. The sway arm is made of fiber-reinforced nylon, and it will not deform even after car crushing.



Specifications

Model

WJCS101

Battery Voltage

DC12V,7Ah

 Standard Voltage

 DC12V

Working Temperature

-35℃~+55℃

Vertical Position Height

340mm

Max Bearing Weight

 5 tons

Net weight

9kgs

Remote control distance

≥30m

Operational Current

 0.4A

Protection Grade

IP68

Dimension

357*370*82.5MM

Running Time

4-6S
