| Place of Origin: | Shenzhen, China |
|---|---|
| Brand Name: | WEJOIN |
| Certification: | SO 9001:2008, CE, |
| Model Number: | WJAT210 |
| Minimum Order Quantity: | 1 set |
| Price: | negotiation |
| Packaging Details: | Export Wooden Case |
| Delivery Time: | 2-7 working days after payment received |
| Supply Ability: | 1, 0000 set / month |
| Cabinet Material: | 304 Stainless Steel | Mechanism: | Die-casting Alloy Aluminum |
|---|---|---|---|
| Power Supply: | 220V±10%, 110V± 10% | Transit Speed: | 25~32 Persons / Min |
| Rated Power: | 50W | Driving Motor: | Brush DC Motor |
| High Light: | turnstile entry systems,pedestrian security gates |
||

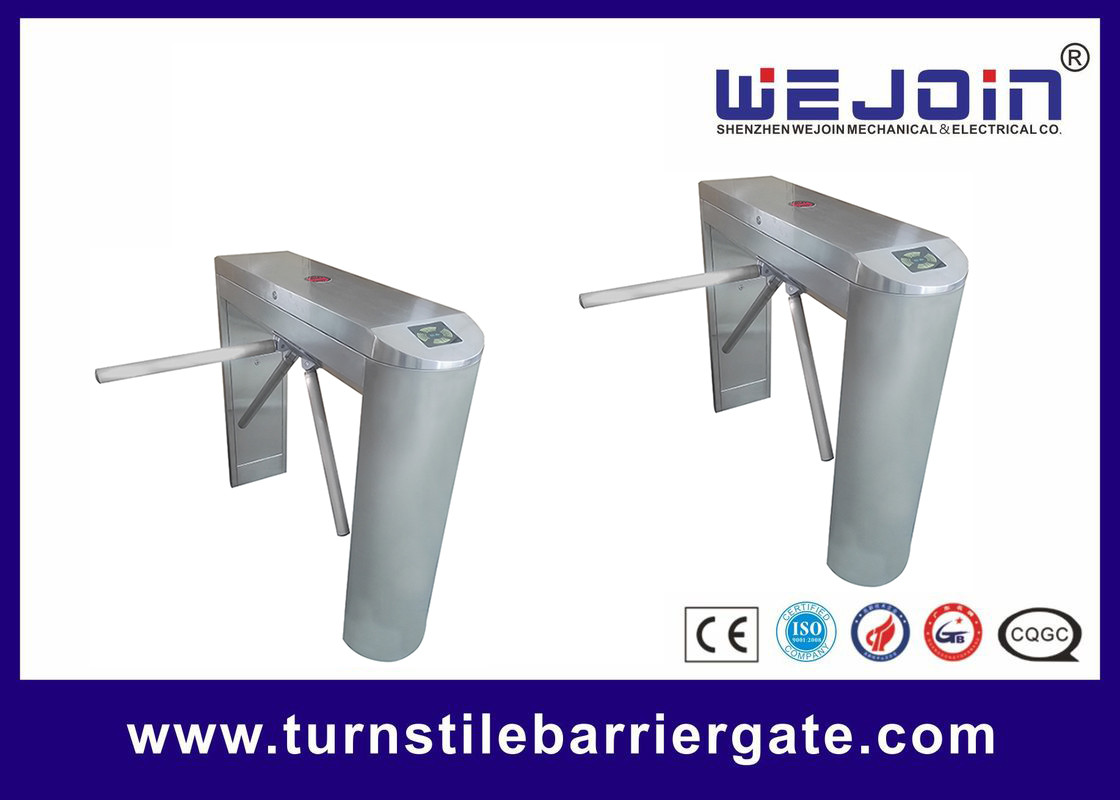

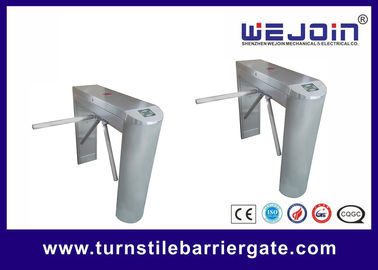

Access Control Automatic Tripod Turnstile Barrier Gate Die Casting Alloy Aluminum Mechanism
Die-casting Alloy Aluminum Mechanism Access Control Automatic Tripod Turnstile Barrier Gate
Applications:
The tripod turnstiles can be used in places such as restaurants, hotels, office buildings, museums, gyms, clubs, metros, bus stations, high class communities, intelligent buildings, hotels, subway stations and other high level venues, ect.
Technical Parameters
| Item | WJAT210 |
| Material of housing | 304 Stainless steel |
| Dimension of Housing | 1200*280*990mm |
| Length of Pole(out of housing) | 490mm |
| Net Weight | 70KG |
| Max load-bearing of pole | 3kg |
| Power Supply | AC220V±10%,50HZ;AC110V±10%,60HZ |
| Working Voltage of motor | DC12V |
| Rated Power | 50W |
| Driving Motor | Brush dc motor |
| Input Interface |
DC 12V electrical level signal, more than 1oms, or DC 12V impulse signal driving current. more than 10ms |
| Transit speed | 25-32 persons/min |
| Working Temperature | -25℃C~+55°C |
| Working environment | Indoor/ Outdoor |
| Relative humidity | <95%, no condensation |
Functions& Features
1). Exquisite rotating plate and self-lock echanism
2). Bi-directional pass/any single direction pass(adjustable)
3). Arm auto-drop when power off and manual rise up when power on
4). Self-lock within 5 seconds
5). Avoid unauthorized access
6). Counter output
7). Fire alarm emergency signal outpu
8). Input interfaces available for left access (L), right access(R), emergency (EM), END
After-sale Service:
1 year warranty
Lifetime Service with charge accordingly
