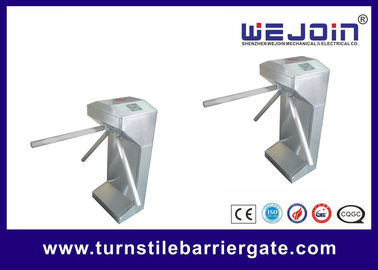

Die Casting Vertical Tripod Turnstile 50W Automatic Rotating Arm Brush dc

Basic Information
Place of Origin: Shenzhen, China
Brand Name: WEJOIN
Certification: SO 9001:2008, CE,
Model Number: WJAT211
Minimum Order Quantity: 1 set
Price: negotiation
Packaging Details: Export Wooden Case
Delivery Time: 2-7 working days after payment received
Supply Ability: 1, 0000 set / month
Detail Information
Cabinet Material: 304 Stainless Steel Mechanism: Die-casting Alloy Aluminum
Communication: RS232 Feature: Durable
Warranty: 1 Year Rotating Direction: Both Way
High Light:

Die Casting Vertical Tripod Turnstile


50W Vertical Tripod Turnstile


Brush Dc Tripod Turnstile Gate

Product Description



Durable 304 Stainless Steel Vertical Tripod Turnstile Automatic Rotating Arm



304 stainless steel Automatic Rotating Arm tripod turnstile Barrier Gate



The tripod turnstiles can be used in places such as restaurants, hotels, office buildings, museums, gyms, clubs, metros, bus stations, high class communities, intelligent buildings, hotels, subway stations and other high level venues, ect.


Functions& Features

1). Exquisite rotating plate and self-lock echanism

2). Bi-directional pass/any single direction pass(adjustable)
3). Arm auto-drop when power off and manual rise up when power on
4). Self-lock within 5 seconds
5). Avoid unauthorized access
6). Counter output

7). Fire alarm emergency signal outpu

8). Input interfaces available for left access (L), right access(R), emergency (EM), END


Technical Parameters

Item WJAT211
Material of housing 304 Stainless steel
Dimension of Housing 420*330*980mm
Length of Pole(out of housing) 490mm
Net Weight 50KG
Max load-bearing of pole 3kg
Power Supply AC220V±10%,50HZ;AC110V±10%,60HZ
Working Voltage of motor DC12V
Rated Power 50W
Driving Motor Brush dc motor
Input Interface

DC 12V electrical level signal, more than 1oms, or DC 12V impulse signal

driving current. more than 10ms

Transit speed 25-32 persons/min
Working Temperature -25℃C~+55°C
Working environment Indoor/ Outdoor
Relative humidity <95%, no condensation


After-sale Service:

1 year warranty

Lifetime Service with charge accordingly
