|Place of Origin:||Shenzhen, China|
|Certification:||ISO 9001:2008, CE, SGS|
|Minimum Order Quantity:||1set|
|Packaging Details:||wooden case|
|Delivery Time:||3-15 days depending on the quantity|
|Payment Terms:||T/T, Western Union, L/C|
|Supply Ability:||1, 000 set/month|
|Payment:||L/C,T/T ,Western Union||Voltage:||110v/220v|
|Rotating Direction:||Double Direction||Housing Material:||Stainless Steel|
pedestrian security gates,
pedestrian access control

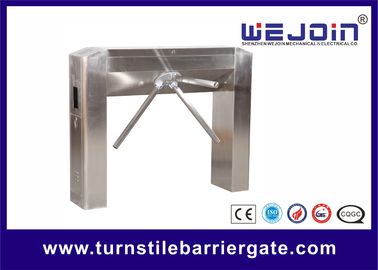

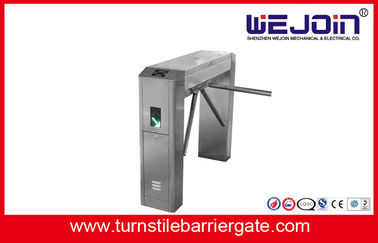

110V/220V Automatic Tripod Turnstile Gate For Access control
This series of 304 stainless steel entrance tripod turnstile adopt the unique technology of our company---the precise photo electricity limit and gear to orient the closure. The 304 stainless steel entrance tripod turnstile be unlocked and reset because of the specific motor. The closure is very precise and stable. This series of 304 stainless steel entrance tripod turnstile adopt standard electricity socket. It can read boom code card, ID card, IC card and so on.
There is a series of 304 stainless steel entrance tripod turnstiles. You can choose the item and specificalion. They can be used in school, metro and chamber and so on. This series is of very high-tech. In order lo guarantee it can run safely, please carefully read this instruclion!
Function and Features:
1. A compact electro-mechanical design with an exquisite rotating plate and a self-lock mechanism
2. Passable for bi-direction
3. Self-locking within 5 seconds if there is no one passing after signal activation
4. Arm auto dropping when power off and manually put the arm up when power on
5. Person counter output is available to indicating passenger quantity; the pulse is 200MS
6. Able to avoid unauthorized access
7. Fire alarm emergency signal output: if with arm auto drop function, the arm will drop automatically after signal activation; if not, the arm rotating plate can operate freely and there is alarm after signal activation
8. Input interfaces available for left access(L), right access(R), emergency(EM), GND; EM is in priority; NO electrical replay output with pulse between 200MS~500MS; EM signal should maintain connected when any emergency happens.
9. Output interfaces available for passenger counters (left and right side); it is dynatron OC output with the pulse of 200MS; working with devices of DC 5V, 12V, 24V.
10. Emergency Alarm interfaces available for alarm equipments under 12W or DC12V
1) Stainless steel Housing.
2) Bi-direction pass.
3) Arms auto drop when power off.
4) Arms auto rise up when power on and auto stop on obstacle.
5) Traffic light indicator.
6) Wingen 26/Dry contact, is compatible with smart card for access control.
7) Photoelectric inspection.
8) If the passenger does not pass in valid time, the passage will be locked up. And the valid passing time can be set up by operator.
9) Passenger counters (optional).
The tripod turnstiles can be used in places such as restaurants, hotels, office buildings, museums, gyms, clubs, metros, bus stations, high class communities, intelligent buildings, hotels, subway stations and other high level venues, ect.
1 year warranty
Lifetime Service with charge accordingly
|Material of housing||304 Stainless Steel|
Dimension of housing
|Thickness of housing||1.5mm|
|Length of pole||490mm|
|Net weight||70kg||40 kg|
|Max load-bearing of pole||80kg|
|Driving force of pole||3kg|
|Rotating direction||Double direction|
|Power supply||220V±10%, 110V± 10%|
|Working voltage of motor||DC12V||DC24V|
|Driving motor||Brush DC motor||Brushless DC Motor|
DC12V electrical level signal, more than 10ms, or
DC12V impulse signal driveling current, more 10mA
|dry contact with the pulse between 200ms~500ms|
|Transit speed||25~32 persons/min||30~45 persons/min|
|Working environment||Indoor / Outdoor (Shelter)|
