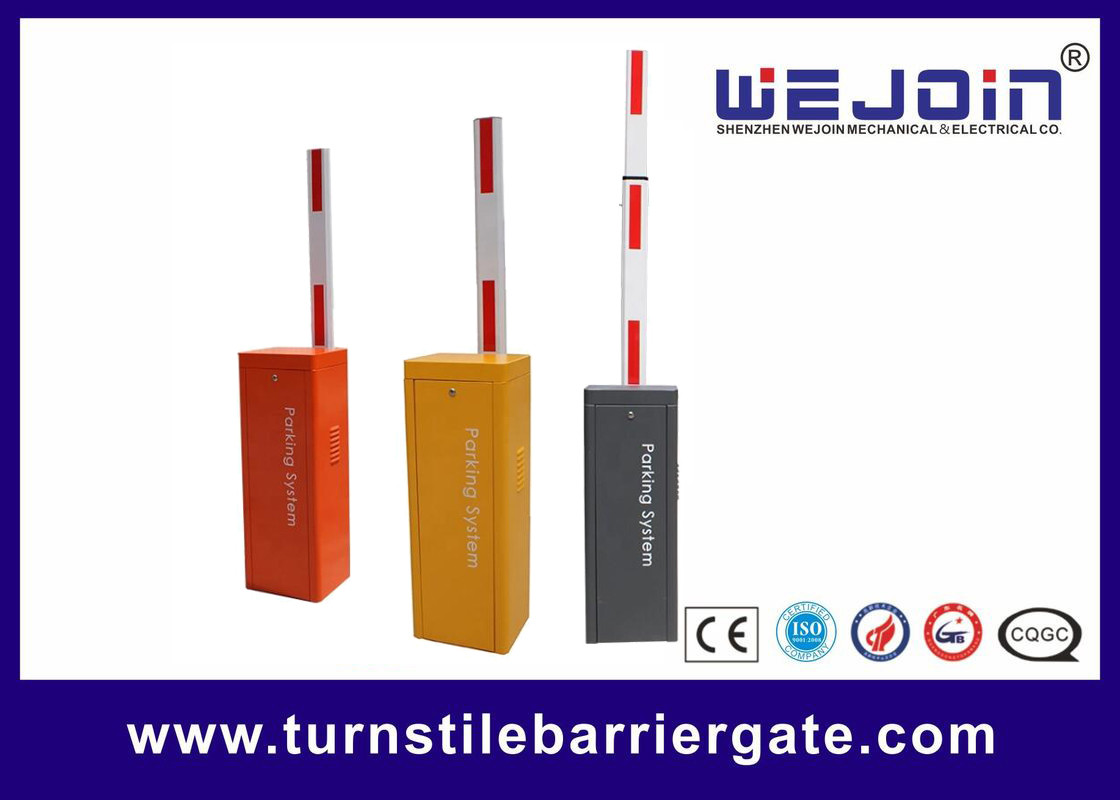

Automatic Electronic Barrier Gates Parking Systems Plastic Road Safety Barriers

Basic Information
Place of Origin: CHINA
Brand Name: WEJOIN
Certification: CE ISO SGS
Model Number: DZJ
Minimum Order Quantity: 1 set
Price: negociate
Packaging Details: carton
Delivery Time: 3-5 working days
Payment Terms: T/T
Supply Ability: 10000 sets/month
Detail Information
Motor Material: Aluminum Alloy Operating Time: 3s, 6s
Boom Type: Straight Folding Fencing Housing Material: 304 Stainless Steel
Color: Yellow Application: Parking Lot
High Light:

automatic parking barrier


parking gate arm

Product Description


Electronic Barrier Gates Applications:

  • station
  • highway toll gate
  • high-grade residential area
  • commercial parking lots
  • enterprises and institutions
  • Commercial Plaza


Technical data:


Model speed Arm Type Max Arm Length Arm Dimension
801J-13 3s


(Telescopic arm is optional)

4.5m 45*100mm
801J-16 6s 6m
801J-23 3s 90º folding 3m
801J-26 6s 5m
801J-33 3s 180º folding 3m
801J-36 6s 5m
801J-46 6s 2 fencing 4m
801J-56 6s 3 fencing 3.5m





Electronic Barrier Gates Features:


Voltage AC220V±10%,AC110V±10%
Frequency 50/60HZ
Rated power 200w
Relative humidity ≤90%
Working temperature -35℃~+60℃
Housing dimension(W*D*H) 335*285*925mm
Enclosure rating IP54
MTBF 2500000 times
Weight 40 KG


Pls choose spring according to the arm type and length.



Electronic Barrier Gates Quick Detail:


1.Wheel manual release.

In case of power off, rotate the wheel manual release on the bottom of the motor to raise the boom manually.

when power on,the motor will work normally.

2.Machine core with strong and double spring,make the machine core works more steadly.

3.Die-casting aluminum alloy motor,precise and good at thermal radiation.

4.Crank and rod structure makes the boom run placidly

5.Reversing on obstacle


7.Support the infrared photocell for antibumping function(optional)

8.Support external and internal vehicle loop detector(optional)

9.Traffic light interface(ac 22v,can support lamp with 40w)

10.Wire control / remote control(418MHZ)

11.Digital limit, more precise

12.Open,close control interface for parking system

13.Provide limit state signal to parking system





Q1: What is your main products?

A: Its main products include automatic barrier gate, tripod turnstile, flap barrier, swing barrier, etc.

Q2: Are you manufacturer? Do you provide ODM / OEM service?

A: Yes, we are manufacturer. WEJOIN provide professional cudtomized serice for global clients.

Q3: I would like to ask if this is with RFID card reader and controller?

A: Yes, there is a controller, our barrier gate can connect with RFID card reader.

Q4: What boom types of your barrier gate?

A: We have 1s with 3m barrier arm, 3s with 4.5m barrier arm, 6s with 6m barrier arm ,etc

Q5: What is your MOQ?

A: Any quantity is acceptable.

Q6: How much is 1 set ? Can provide product details? How fast and how much it would cost to ship this item?

A: Please Click here and send your inquiry, then we will send you the price and details in time.

Q7: How about payment option?

A: 30% by T/T, 70% by T/T before delivery.

Q8: Do you have a model that can be used outdoors without further shelter?

A: Yes, It can be used outdoor without shelter. But product life will be longer with shelter.

Q9: How much warranty time do you have?

A: Whithin one years, if any problems, we will offer the accessories.

Q10: Do you use wechat? Can we plaese talk on wechat? or whatsapp?

A: Yes,my wechat ID FZ15002051250, my phone number/whatsapp is +86 15002051250, my skype ID wejoin09.
