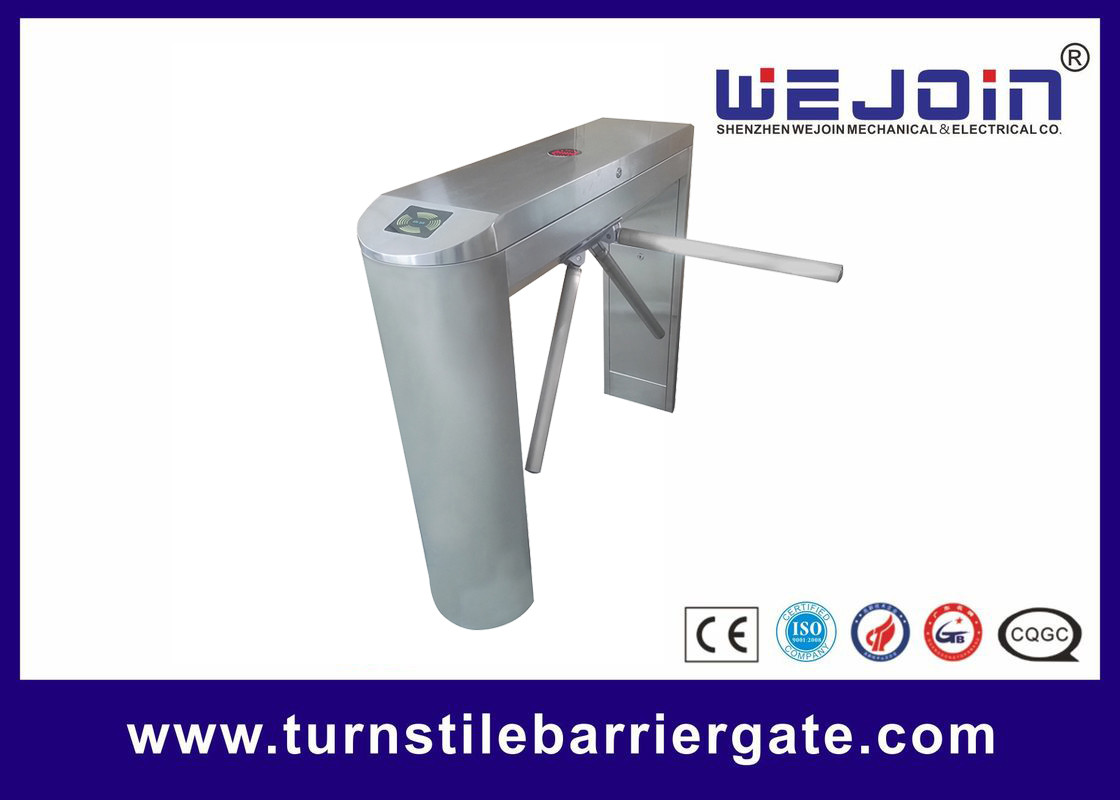

Tripod Access Control Turnstile Gate RFID Card Fire Alarm Emergency Signal Output

Basic Information
Place of Origin: Shenzhen, China
Brand Name: WEJOIN
Certification: SO 9001:2008, CE,
Model Number: WJAT210
Minimum Order Quantity: 1 set
Price: negotiation
Packaging Details: Export Wooden Case
Delivery Time: 2-7 working days after payment received
Payment Terms: L/C, T/T, Western Union
Supply Ability: 1, 0000 set / month
Detail Information
Cabinet Material: 304 Stainless Steel Mechanism: Die-casting Alloy Aluminum
Communication: RS232 Feature: Durable
Warranty: 1 Year Rotating Direction: Both Way
High Light:

turnstile security systems

,

speed gate systems


Product Description





Automatic Tripod Turnstile




Product Brief Introduction
This series of turnstile adopt the unique technology of our company-the precise photo electricity limit and gear to orient the closure. The turnstile be unlocked and reset because of the specific motor. The closure is very precise and stable. This series of turnstile adopt standard electricity socket. It can read boom code card, ID card, IC card and so on.


Functions& Features:
1). Exquisite rotating plate and self-lock mechanism.
2). Bi-directional pass/any single direction pass(adjustable).
3). Arm auto-drop when power off and manual rise up when power on.
4). Self-lock within 5 seconds.
5). Avoid unauthorized access.
6). Counter output.
7). Fire alarm emergency signal output.
8). Input interfaces available for left access (L), right access(R), emergency (EM), GND.


Technical Parameters:

Item WJAT210
Material of housing 304 Stainless steel
Dimension of Housing 1220*280*990mm
Length of Pole(out of housing) 490mm
Net Weight 70KG
Max load-bearing of pole 3kg
Power Supply AC220V±10%,50HZ;AC110V±10%,60HZ
Working Voltage of motor DC12V
Rated Power 50W
Driving Motor Brush dc motor
Input Interface

DC 12V electrical level signal, more than 1oms, or DC 12V impulse signal
driving current. more than 10ms

Transit speed 25-32 persons/min
Working Temperature -25℃C~+55°C
Working environment Indoor/ Outdoor
Relative humidity <95%, no condensation



Applications:
The tripod turnstiles can be used in places such as restaurants, hotels, office buildings, museums, gyms, clubs, metros, bus stations, high class communities, intelligent buildings, hotels, subway stations and other high level venues, ect.



Installation:

attention

1)Other equipments can not be installed on the turnstile. Make sure the ground-wire safe.

2)When the turnstile is used outdoors, please install something right up the turnstile to protect form the rain and sunlight. The turnstile should be forbidden to be installed without anything protecting from rain and sunlight.



Structure of the turnstile:

The turnstile is composed of stainless steel housing, machine core,control panel, card reader and display equipment and so on. The stainless steel housing is made by separation and combination structure, which make it easy for package and shipment. (Refer to our products for details). The card reader is made and offered by us. The user can also install the card reader according to his own needs. There are places form installing the card reader and the display equipment. If the user want to choose the card reader themselves, please tell us the specification and position of the card readers.



The composition of the turnstile

The turnstile can be used as a unit and as one intelligent passage. It can also be used together, composing several passages. Meanwhile, it can also connect to the computer. So working feedback can be sent back to the administer. This feedback can form a report so that the administer can control the turnstiles well.



The working mode of the turnstile:

In order to facilitate the user, there are multiple working modes for the user to chose according to the actual situation of usage.

1) Bi-directional card reading and staff limiting
2) Left can read the card, while right can be forbidden to pass
3) Right can read the card, while left can be forbidden to pass
4) Bi-directional forbidden pass



After-sale Service:

  • 1 year warranty
  • Lifetime Service with charge accordingly
  • 24 hours online service



FAQ
Q1: What is your main products?
A: Its main products include automatic barrier gate, tripod turnstile, flap barrier, swing barrier, etc.
Q2: Are you manufacturer? Do you provide ODM / OEM service?
A: Yes, we are manufacturer. WEJOIN provide professional cudtomized serice for global clients.
Q3: I would like to ask if this is with Mifare reader and controller?
A: Yes, there is a controller, our turnstile has control board, can connect with Mifare reader.
Q4: Can we buy this product and grant acess to the user via cell phone app/bar code? What access point options does it come with? Card? Token?
A: Yes, you can connect the turnstile with bar code reader, and other customized access controller.
Q5: What is your MOQ?
A: Any quantity is acceptable.
Q6: How much is 1 set ? Can provide product details? How fast and how much it would cost to ship this item?
A: Please send your inquiry, then we will send you the price and details in time.
Q7: How about payment option?
A: 30% by T/T, 70% by T/T before delivery.
Q8: Do you have a model that can be used outdoors without further shelter?
A: Yes, It can be used outdoor without shelter. But product life will be longer with shelter.
Q9: How much warranty time do you have?
A: Whithin one years, if any problems, we will offer the accessories.
Q10: Do you use wechat? Can we plaese talk on wechat? or whatsapp?
A: Yes,my wechat ID FZ15002051250, my phone number/whatsapp is +86 15002051250, my skype ID wejoin09.


OEM/ODM Service:
If you want to display your own brand LOGO on the goods or any where. It is no any problem. Our OEM and ODM service is always ready to do it.

Packing:
According to Stardard Export Packing.
Carton box, wooden box, wooden pallet.



No. Title of parts Qty Remark
1 Rotating plate 1 Necessary parts
2 Boom 3 Necessary parts
3 Motor 1 Necessary parts
4 Plastic basement (fixing motor) 2 Necessary parts
5 Red & green light panel and its wiring 2 Necessary parts
6 Mainboard 1 Necessary parts
7 Power panel and its wiring 1 Necessary parts
8 Transformer 1 Necessary parts
9 Connector bar 1 Necessary parts
10 Air switch 1 Necessary parts
11 Head of card reader and its wiring 2 Optional parts
12 Voice module and its wiring 1 Optional parts
13 Counter and its wiring 2 Optional parts
14 LED and its wiring 1 Optional parts
15 TCP/IP-RS232 patch board and its wiring 1 Optional parts


Shipping:
- International express such as UPS, TNT, DHL, etc
- Internatioal air: CA, AA, EA, etc
- By sea
