|Motor Material:||Aluminum Alloy||Operating Time:||0.5-0.9 S|
|Boom Type:||Carbon Fiber Round Boom||Application:||Parking Lot|
|Warranty:||2 Year||Protection Class:||IP54|
auto barrier gate system,
car park barriers

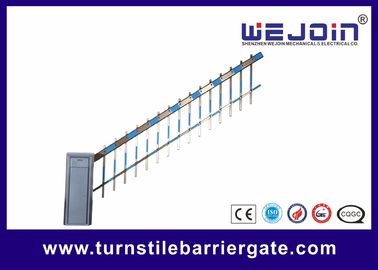

Parking Gate Design Arm Automatic Parking Lot Entrance Barrier Gate
Parking Barrier Gate Brief Introduction:
WEJOIN Commercial Servo Barrier Gate WJCB02
Fastest running speed can be 0.4 second (model WJCB02E, 0.4~0.9s adjustable), 100% duty cycle and free-maintenance make the barrier be proper for toll station and parking system!
Parking Barrier Gate Technical Data:
Input Voltage:AC 220V±10%, AC110V±10%, 50/60HZ
Enclosure Rating: IP54
Working Temperature: -35°C~+85°C
Traffic Flow Application:24 hours uninterrupted operation
Max Motor Power:300W
Max Motor Speed:90r/min
Max Torque: 480N.m
Carbon Fiber Straight
Max Boom Length
Parking Barrier Gate Applications:
highway toll gate
high-grade residential area
commercial parking lots
enterprises and institutions
Parking Barrier Gate Introduction:
This is our newly-produced DC servo barrier gate, which utilizes the updated electronic control technology and machinery processing technology, no limit switch design, to realize non-adjust of mechanism, adjustable speed, automatic speed reduction, ext. In this way, make the barrier operate more steadily and more reliably.
Parking Barrier Gate Features:
1.DC permanent magnet synchronous motor(PMSM),servo control.
2.Superior performance,equivalent to the main motor of the CNC machine tool and the electric vehicle motor, it has high control precision, high torque density, good torque balance, low power consumption, high efficiency, less heat and low noise.
3.Bi-direction boom holder design: left-installation and right-installation can be exchanged easily and quickly.
4.Electronic clutch design: more convenient to unclck or lock the motor when power off.(patented technology)
5. Three tension spring crank transmission design, for more stable and reliable structure.(patented technology)
6.No limit switch design, accurate encoder detection, detecting boom position when power on. And open/close speed is adjustable.
7.More sensitive and reacting faster when reversing on obstacles.
8.With counting, delay auto-closing, auto-aging test, alarm when lifting boom without permission, motorcade passing function.
9.LCD display controller, more humanized operation and setting.
10.NO/NC wire control signal input are optional.
11.Integrated RS485 communcation, RJ45 network, infrared photocell, loop detector interface, radar module and more secondary development.
Parking Barrier Gate Warranty and Service Items
Free service is oFFered for component parts in one year warranty time.
(not includes the barrier boom or remote)
Lifetime service with charge accordingly.
Technical questions are supported.
WEJOIN's Main Advantages
Global leading company for barrier gate
Master of core technology and innovation
Intelligent quality manufacturing process and automatic flexible production
Global advanced manufacturing process and testing equipment
Servo,variable frequency,double speed,bi-direction motor and other leading technique
High speed and low speed coexist in motor
Intergral service network covering fist-tier and second-tier cities,and more under construction service network
Q1: What is your main products?
A: Its main products include automatic barrier gate, tripod turnstile, flap barrier, swing barrier, etc.
Q2: Are you manufacturer? Do you provide ODM / OEM service?
A: Yes, we are manufacturer. WEJOIN provide professional cudtomized serice for global clients.
Q3: I would like to ask if this is with RFID card reader and controller?
A: Yes, there is a controller, our barrier gate can connect with RFID card reader.
Q4: What boom types of your barrier gate?
A: We have 1s with 3m barrier arm, 3s with 4.5m barrier arm, 6s with 6m barrier arm ,etc
Q5: What is your MOQ?
A: Any quantity is acceptable.
Q6: How much is 1 set ? Can provide product details? How fast and how much it would cost to ship this item?
A: Please Click here and send your inquiry, then we will send you the price and details in time.
Q7: How about payment option?
A: 30% by T/T, 70% by T/T before delivery.
Q8: Do you have a model that can be used outdoors without further shelter?
A: Yes, It can be used outdoor without shelter. But product life will be longer with shelter.
Q9: How much warranty time do you have?
A: Whithin one years, if any problems, we will offer the accessories.
Q10: Do you use wechat? Can we plaese talk on wechat? or whatsapp?
A: Yes,my wechat ID FZ15002051250, my phone number/whatsapp is +86 15002051250, my skype ID wejoin09.
