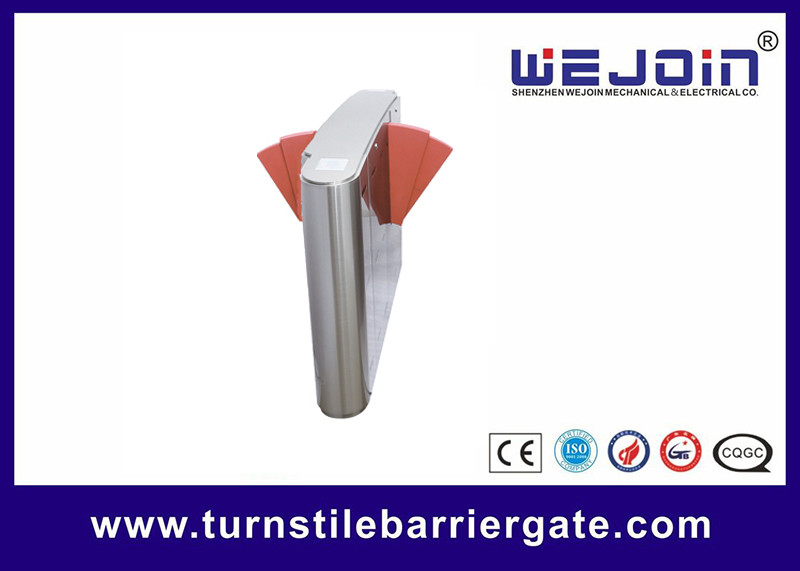

RFID Card Flap Barrier Gate Unique Structure Mechanism Gate Access Control Systems

Basic Information
Place of Origin: Shenzhen,China
Brand Name: WEJOIN
Certification: CE,ISO
Model Number: WJTY401
Minimum Order Quantity: 1set
Price: Negotiation
Packaging Details: wooden box
Delivery Time: 20-25 days
Payment Terms: T/T, Western Union
Supply Ability: 50pcs/week
Detail Information
Lane Wideth: 600mm Wing Material: PVC
Motor: DC12V Protection Grade: IP32
Battery Needed: Yes Material: 304 Stainless Steel
High Light:

security turnstiles


optical turnstile

Product Description

RFID card reader flap barrier mechanism gate access control systems


Product Introduction
Intelligent flap barrier is a brand-new product of WEJOIN Company It has features of precise craftsmanship, comprehensive functions, and high reliability.

This machine is suitable to be used in places like high-class communities, office buildings, hotels, subway stations, gyms, and so on.

Unique structure with drive shaft system make it reliable and maintenance-free (no need regular gear clutch structure). When power failure, the door will close automatically without an accumulator.

The flap barrier consists of the left machine core and right machine core The machine core is classified into single core and double core, left core and right core, and core for normal lane (600mm)or widened lane(900mm)



Mechanism dimension

Case dimension



Flap length


Maximum lane


Motor material


steel and aluminum alloy

AC220v ±10% , 50/60 Hz

AC110v ±10% , 50/60 Hz

brush motor

DC 24V


Dry contact interface

Flow speed

30-40 people per minute

Opening/closing time


Time for a reset when powered on


Protection grade


Working environment

indoor and outdoors with shelter, -25 ºC~+50 ºC


Functions and Features

1. A compact electro-mechanical design with a unique drive and a self-lock mechanism (no need for regular gear clutch structure).

2. Automatic detection for malfunctions.

3. Input interface available for dry contact and switch signal connection.

4. Adjustable auto-delay closing

5. Infrared photocells for safety access

6. Alarm for unauthorized access and no access against passenger flow

7. Anti-reverse passing

8. Auto-closing when power on

9. Auto-open and free access when power off

10. Adjustable access directions.

11. No battery is needed.

12. Emergency interface available.

13. Traffic light indicating passenger access.


RFID Card Flap Barrier Gate Unique Structure Mechanism Gate Access Control Systems 0
