| Place of Origin: | SHENZHEN |
|---|---|
| Brand Name: | WEJOIN |
| Certification: | CE,ISO,SGS |
| Model Number: | WJMP202 |
| Minimum Order Quantity: | 1 SET |
| Price: | USD 150-200 SET |
| Packaging Details: | Carton |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 10000 set / month |
| Material: | Aluminum Alloy Die-cast | Usage: | Residential Sliding Gates |
|---|---|---|---|
| Environment Temperature: | -25°C ~ +55°C | Limit Switch: | Magnetic Limit Switch Or Spring Limit Switch |
| Voltage: | 220 V / 110 V | Name: | Sliding Gate Operator |
| High Light: | sliding gate opener motor,automatic sliding gate opener |
||

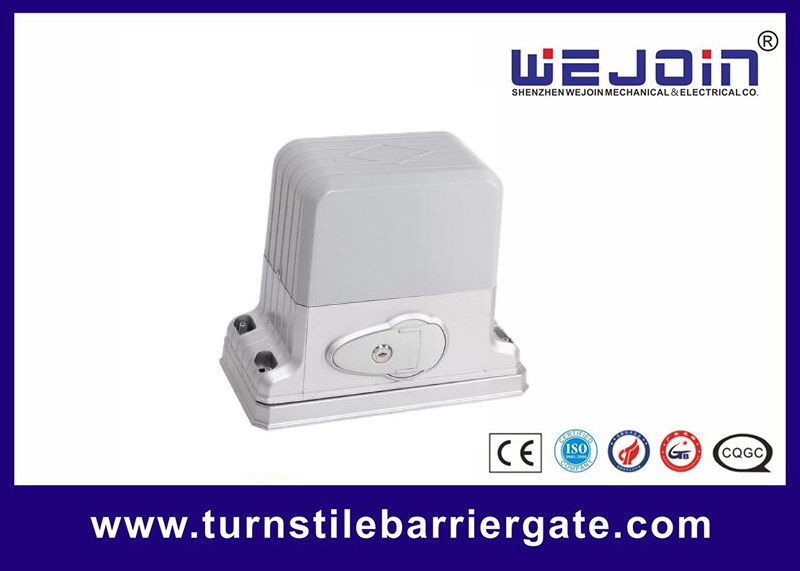

heavy duty electric easy slider gate motor with photocell sensor
Detailed Spec.
1. Type: automatic sliding door motor
2. Model No.: WJMP202
3. Color: as image or as your design
4. Measurement: 31*25*20cm
5. Brand: WEJOIN
6. Net weight/ Gross weight: 10kg
7. Packing: 1pcs/carton
8. Place of origin: Guangdong,China
9. minimum order: can mix order
sliding gate operator WJMP202 parameter
|
Model |
WJKMP202 |
|
Voltage |
220V±10% |
|
Frequency |
50HZ |
|
Current |
2.7A |
|
Motor voltage |
AC220V / 110V |
|
Output Power |
350W |
|
Torque |
35nm |
|
Motor speed |
1350rpm |
|
Gear speed |
58.5rpm |
|
Travel speed |
11m/min |
|
Working temperature |
-40°C∼ +55°C |
|
Overload protection temperature |
130°C |
|
Motor making technique |
Die casting aluminum alloy |
|
Manual Release |
Yes |
|
Product weight(approx) |
10.19kg |
|
Max.weight of gate |
1800kg |
Advantages
1. Intellectualized soft start and soft stop
2. Built in Adjustable auto-close
3. Secure rolling code for the remote
4. Stop/Reverse in case of obstruction
5. Emergency release key in case of power failure
6. 24v low safety voltage
7. Built in Max motor running time(MRT) for multiple safety protection
8. Convenient midway mode
9. Electromagnetism limit switch.
Motor base and it's installation
1. Motor base installation: set the installation position of the base tray according to the size of the motor and the height of the installation position of the gear rack. Then Embed the bolts in advanced or use the expansion bolts to embed the base into the cement foundation.
2. If the gear rack has already been installed, fix the motor to th base and turn the clutch with the clutch key to the off position, then make the gear of the motor suit right to the gear rack, then the position of the base can be set. Take off the motor and fix the base.
Motor installation
1.Put the motor on the base, fix up the motor with hexangular screws.
2.Loosen the four screws on the outer shell and remove the shell Connect the wire according to the electric diagram. After debugging, install the shell and fix it with bolts.
