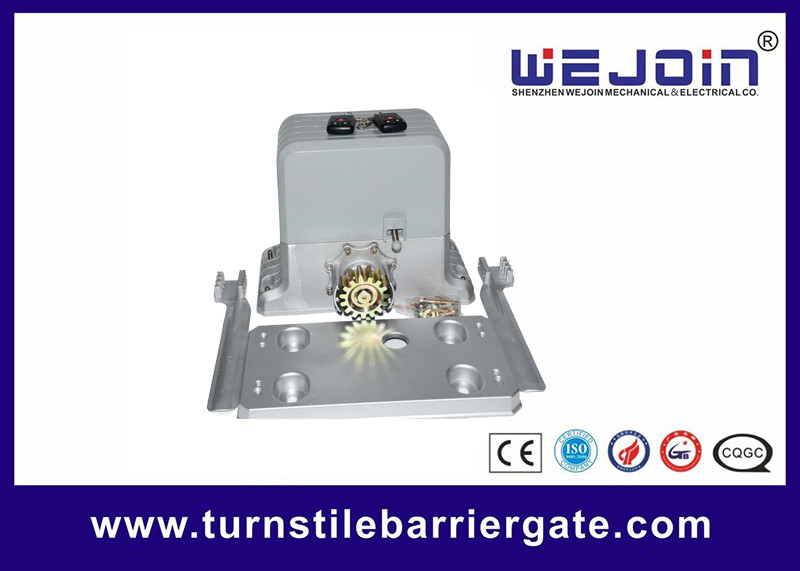

AC 110V 220V Sliding Gate Motor Intelligent Self Protection Against Over Heat

Basic Information
Place of Origin: SHENZHEN
Brand Name: WEJOIN
Certification: CE,ISO,SGS
Model Number: WJMP202
Minimum Order Quantity: 1 SET
Price: USD 150-200 SET
Packaging Details: Carton
Payment Terms: T/T, Western Union
Supply Ability: 10000 set / month
Detail Information
Material: Aluminum Alloy Die-cast Environment Temperature: -25°C ~ +55°C
Limit Switch: Magnetic Limit Switch Or Spring Limit Switch Voltage: 220 V
Name: Sliding Gate Operator Function: Control
High Light:

sliding gate opener motor

,

automatic sliding gate opener


Product Description

Automatic Sliding Gate Opener / Sliding Gate Operator ac 110v 220v



Features:
*Heavy duty sliding gate opener with strong AC motor
*Built-in control panel without separate control box makes installation more easier
*Self-lock in closure position
*Manual open by release key on power failure
*Superior quiet and stable operation
*Multi-connection to the pushbutton, access control, alarm lamp, safety beam sensor, loop detector etc.
*Intelligent self-protection against over-heat, over-voltage
*Excellent safety protection, reverse on obstacles subjected to safety beam sensor connected
*Hold-open time adjustable
*Soft start & stop



Technical Parameters:

Power

AC220C±10V 50/60HZ

Motor speed

55rpm 66rpm

Operating Temperature

-20°C~+50°C

Relative Humidity

≤95%, No Condensation

Remote control operating distance

30m (Frequency433.92mHz)

Rated output power of motor

200W

Remote control mode

Single button

Max gate weight

1800Kg

Output torque

16Nm

Limit switch

Spring limit switch

Noise

≤58dB

Duty cycle

S2, 15 minutes

Extra remote control

20 pcs

Gate move speed

12m/min

Application

Home automation



Packing:
Selling Units: Single item
Single package size: 38*29*34 cm
Single gross weight: 13.0 kg
Package Type: Carton box



Our service:
1. Any email will be checked in 5 minutes, any inquiry will be replied within 1 hour, and any solution will be supplied in 1 day.
2. Professional R&D team and manufacturer, supply OEM & ODM.
3. Best quality, Fashion design, reasonable & competitive price, fast lead time.
4. After-Sale Service



AC 110V 220V Sliding Gate Motor Intelligent Self Protection Against Over Heat 0
