| Place of Origin: | SHENZHEN |
|---|---|
| Brand Name: | WEJOIN |
| Certification: | CE,ISO,SGS |
| Model Number: | WJMP202 |
| Minimum Order Quantity: | 1 SET |
| Price: | USD 150-200 SET |
| Packaging Details: | Carton |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 10000 set / month |
| Environment Temperature: | -25°C ~ +55°C | Limit Switch: | Magnetic Limit Switch Or Spring Limit Switch |
|---|---|---|---|
| Voltage: | 220 V | Name: | Sliding Gate Operator |
| Function: | Control | Material: | Die Casting Aluminum Alloy |
| High Light: | sliding gate opener motor,automatic sliding gate opener |
||

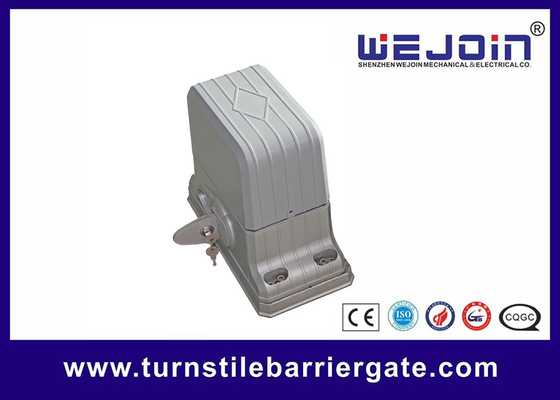

1800kgs Sliding Gate Motor Automatic Door Operators Spring limit switch
Detailed Spec.
1. Type: automatic sliding door motor
2. Model No.: WJMP202
3. Color: as image or as your design
4. Measurement: 31*25*20cm
5. Brand: WEJOIN
6. Net weight/ Gross weight: 10kg
7. Packing: 1pcs/carton
8. Place of origin: Guangdong,China
9. Minimum order: can mix order
Sliding Gate Door Opener Features
1. Soft start and soft stop
2. Emergency release key in case of power failure
3. Convenient midway mode
4. Stop/Reverse in case of obstruction during gate opening/closing.
5. Optional photocell protection
6. Built -in adjustable auto-close (0-99 seconds)
7. Digital display indicates the running situation and setting menu
8. Reliable limit switch(electromagnetism) for easy adjustment
9. Built-in max motor running time( MRT) adjustable for multiple safety protection
10. Easy to handle and low maintenance
11. 24V low safety voltage with optional solar set as backup battery
12. Guarantee: Normally one year after the shipping, but our after sales service last for lifelong time.
13. Packing: Export brown carton or colorful box depend on your order item, or customized carton with your own logo (we have amount requirement on customized items, above 500pcs per item)
Technical Parameters:
|
Power |
AC220C±10V 50/60HZ |
|
Motor speed |
55rpm 66rpm |
|
Operating Temperature |
-20°C~+50°C |
|
Relative Humidity |
≤95%, No Condensation |
|
Remote control operating distance |
30m (Frequency433.92mHz) |
|
Rated output power of motor |
200W |
|
Remote control mode |
Single button |
|
Max gate weight |
1800Kg |
|
Output torque |
16Nm |
|
Limit switch |
Spring limit switch |
|
Noise |
≤58dB |
|
Duty cycle |
S2, 15 minutes |
|
Extra remote control |
20 pcs |
|
Gate move speed |
12m/min |
|
Application |
Home automation |
