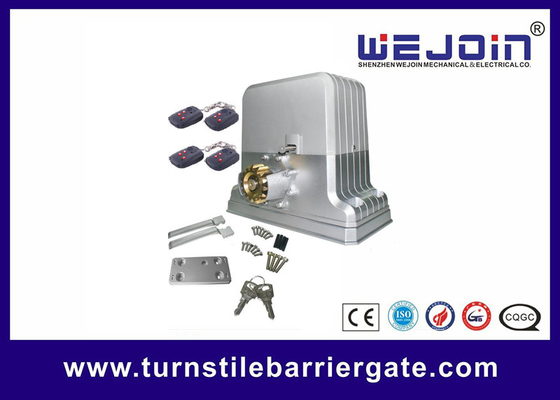

Home Automation Sliding Gate Motor Smooth Start Up For Residential Sliding Gates

Basic Information
Place of Origin: SHENZHEN
Brand Name: WEJOIN
Certification: CE,ISO,SGS
Model Number: WJMP202
Minimum Order Quantity: 1 SET
Price: USD 150-200 SET
Packaging Details: Carton
Payment Terms: T/T, Western Union
Supply Ability: 10000 set / month
Contact Now
Detail Information
Environment Temperature: -25°C ~ +55°C Limit Switch: Magnetic Limit Switch Or Spring Limit Switch
Voltage: 220 V Function: Control
Material: Die Casting Aluminum Alloy Type: Automatic Door Operators

Product Description

Home automation sliding gate operator for residential sliding gates



Sliding door opener; Door opener
1) Built-in control board.
2) Smooth start-up.
3) Max weight of gate: 1800Kg.



Electronic Data

Model

KMP202

Soft start

YES

Stop on obstacle (sensitivity adjustable)

YES

Auto warming-up (at freezing temperature)

YES

Remote control

418MHz (50m, approx)

Wire control

Available

Auto closing

YES

Vehicle loop detector socket

YES

Photocell socket

YES

Alarm light socket

YES



Functions:
1) Thermal prection and ensure running smoothly though in low voltage
2) Magneticl limit switch, and accurate limit braking
3) Open and close limits have a self-locking function
4) Intelligent interfaces with alarm lamp, photocell, etc for security
5) Optional line control or remote control, manual control



Troubleshooting

1 The motor runs but the sliding gate operator doesn't work.
A: Check whether the clutch is closed.

2 The power indicator light doesn't flash and the key doesn't react.
A: Check whether power is connected right.
B: Check whether the fusel is burned, it yes, please exchange it.

3 The opening and closing limit can not work.
A: Check whether the limit adjustment switch is installed right.
B: Check whether the limit iron is installed right. Adjust the position of the limit iron.

4 Crash proof is not effective.
A Check whether the connection of crash proof is correct.
B: Check whether the photocell is installed right.
C: Check whether the connection of the wire of the loop detector is right.

5 When the gate just close up, it turns to open.
A: Check whether the voltage is normal.
B: If the crash proof equipment is installed, please check whether it works well.

6 The remote control doesn't work
A: Check whether the battery is low. If yes, change it.
B Check whether the code of the remote control is the same with the code of the control panel.
