products

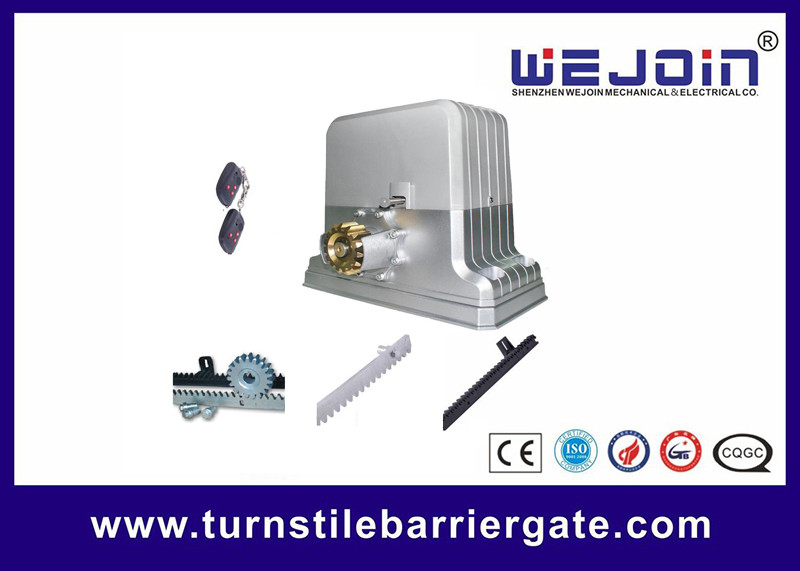

Electronic Limit Switch Remote Sliding Gate Motor Die Casting Aluminum Alloy Material

Basic Information
Place of Origin: SHENZHEN
Brand Name: WEJOIN
Certification: CE,ISO,SGS
Model Number: WJMP202
Minimum Order Quantity: 1 SET
Price: USD 150-200 SET
Packaging Details: Carton
Payment Terms: T/T, Western Union
Supply Ability: 10000 set / month
Contact Now
Detail Information
Environment Temperature: -25°C ~ +55°C Limit Switch: Magnetic Limit Switch Or Spring Limit Switch
Voltage: 110 V Function: Control
Material: Die Casting Aluminum Alloy Type: Automatic Door Operators

Product Description

Intelligent electronic limit switch remote gate motor door opener sliding gate operator automatic



Main Features


1, Ultra-low power consumption in standby mode. Average power consumption is less than 0.05W, longer service life of the battery.
2, Electronic limit switch, never miss the limit switch position. Power failure or manual release would not affect the OPEN/CLOSE position any more.
3, Remote control learning more intelligent. Remote controls can be learned without disassembling the motor, bring more convenience to users.
4, Integrated structure of motor and battery makes installation more convenient. Built-in large capacity battery exempts your extra worries about power failure.
5, Intelligent Soft Start-Slow Stop function makes gate running more smoothly, extend its service life. Speed and distance are adjustable according to the installation.
6, Intelligent Human-Machine interaction, indicator light feeds back the error information timely makes installation and testing easier.
7, Obstruction protection, anti-clip function when hitting the obstacles protects life and property safety better.
8, Battery low power protection. Auto-stop when battery power is low to avoid damaging the battery due to excessive discharge.
9, Infrared protection, device can be optional connected to ensure the passing safety.
10, Auto-Close function can be set on demand.



Electronic Data

Model

KMP202

Soft start

YES

Stop on obstacle (sensitivity adjustable)

YES

Auto warming-up (at freezing temperature)

YES

Remote control

418MHz (50m, approx)

Wire control

Available

Auto closing

YES

Vehicle loop detector socket

YES

Photocell socket

YES

Alarm light socket

YES



Troubleshooting

1. The motor runs but the sliding gate operator doesn't work.
A: Check whether the clutch is closed.

2. The power indicator light doesn't flash and the key doesn't react.
A: Check whether power is connected right.
B: Check whether the fusel is burned, it yes, please exchange it.

3. The opening and closing limit can not work.
A: Check whether the limit adjustment switch is installed right.
B: Check whether the limit iron is installed right. Adjust the position of the limit iron.
