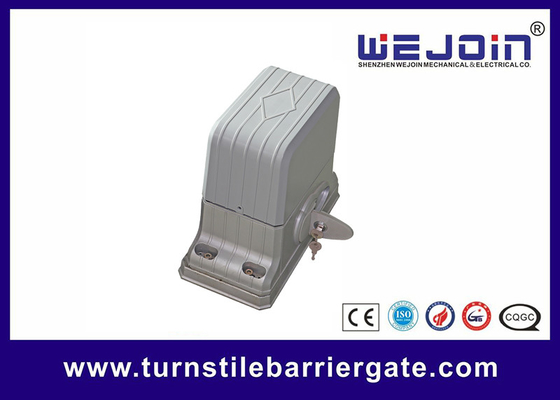

DC 1800kg Sliding Gate Motor Operator Underground WJMP202 For Villa Gate

Basic Information
Place of Origin: SHENZHEN
Brand Name: WEJOIN
Certification: CE,ISO,SGS
Model Number: WJMP202
Minimum Order Quantity: 1 SET
Price: USD 150-200 SET
Packaging Details: Carton
Payment Terms: T/T, Western Union
Supply Ability: 10000 set / month
Contact Now
Detail Information
Limit Switch: Magnetic Limit Switch Or Spring Limit Switch Voltage: 220 V
Function: Control Material: Die Casting Aluminum Alloy
Type: Automatic Door Operators Usage: Villa Gate
High Light:

sliding gate opener motor

,

automatic sliding gate opener


Product Description

DC 1800kg Automatic Sliding Gate Opener Operator Underground



Product Description

Model No

KMP 202

Rated voltage

220V±10%

Electronic motor

24VDC

Rated motor power

350W

Gear modulus

M=4

Max loading weight

1800KG

Open/close speed

11m/min

Output torque(N.m)

35N.m

Limit switch type

Magnetic

Working temperature

-40°C~+55°C



Features of automatic sliding gate opener :
1. AC/DC motor with built in control panel
2. Built in manual override with 2 supplied unqique override keys in case of emergency or power failure.
3. All metal gears make it durable and long lasting.
4. Soft start and soft stop.
5. Resistance sensitivity and auto-closing delay time adjustable.
6. Stop/reverse in case if obstruction during gate opening/closing.
7. Reliable magnetic limit supplied.
8. Back up battery and solar system are available for DC sliding.
9. 12 months guarantee; lifelong post sales service.



Control panel main features
1. Single button can finish all the control command(such as close,open,stop.)
2. Can adjust the output power of motor
3. Can adjust the working time of motor
4. Can program the time of auto close
5. Can set auto close when restored power after power off
6. Have the terminals for photocell, loop detector,IC card reader ,alarm light etc
7. Can march 30 remote controls at most



Troubleshooting
1 The power indicator light doesn't flash and the key doesn't react.
A: Check whether power is connected right.
B: Check whether the fusel is burned, it yes, please exchange it.

2 The opening and closing limit can not work.
A: Check whether the limit adjustment switch is installed right.
B: Check whether the limit iron is installed right. Adjust the position of the limit iron.

3 Crash proof is not effective.
A Check whether the connection of crash proof is correct.
B: Check whether the photocell is installed right.
C: Check whether the connection of the wire of the loop detector is right.



DC 1800kg Sliding Gate Motor Operator Underground WJMP202 For Villa Gate 0
