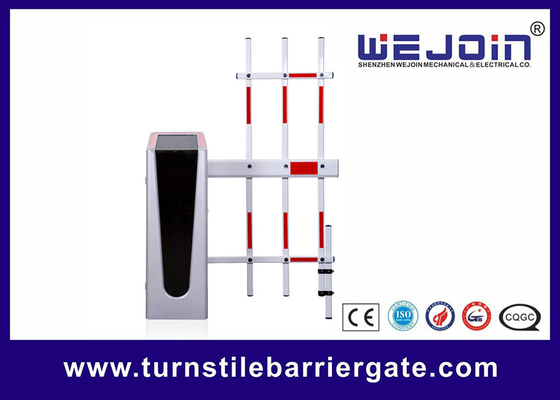

Remote control car parking entrance barrier gate servo motor
Functions and Features
1. Innovative electronic clutch design: press the electronic clutch switch to unlock when power off, then the boom can be raised up directly.
2. No limit switch design: the motor can detect the boom position automatically.
3. Bi-direction boom holder design: left-installation and right-installation can be exchanged easily and quickly.
4. Three springs available can extend the spring service life.
5. Auto-detect barrier close after power-on, open/close speed is adjustable.
6. With auto-reversing on obstruction function.
7. Infrared photocell interface is available. (need to install photocell device).
8. Loop detector interface is available, to avoid hitting the vehicle, and control the boom falling down automatically after vehicle passing (need to install loop detector).
Technical Data
|
Input Voltage |
AC 220V±10%, AC110V |
|
Motor Voltage |
DC310V |
|
Enclosure Rating |
IP54 |
|
Working Temperature |
-35°C~+85°C |
|
MTBF |
10000000 times |
|
Duty Cycle |
100% |
|
Traffic Flow Application |
24 hours uninterrupted operation |
|
Max Motor Power |
300W |
|
Max Motor Speed |
90r/min |
|
Max Torque |
480N.m |
Application:
This Parking Barrier Gate provides a secure and convenient solution of stopping unauthorized vehicle or giving access to authorized vehicle, for parking lots with high traffic flow such as toll gate, shopping center, exhibition center, hospitals, airport etc.
WEJOIN's Main Advantages
1.Global leading company for barrier gate
2.Master of core technology and innovation
3.Intelligent quality manufacturing process and automatic flexible production
4.Global advanced manufacturing process and testing equipment
5.Servo,variable frequency,double speed,bi-direction motor and other leading technique
6.High speed and low speed coexist in motor
7.Integral service network covering fist-tier and second-tier cities,and more under construction service network
