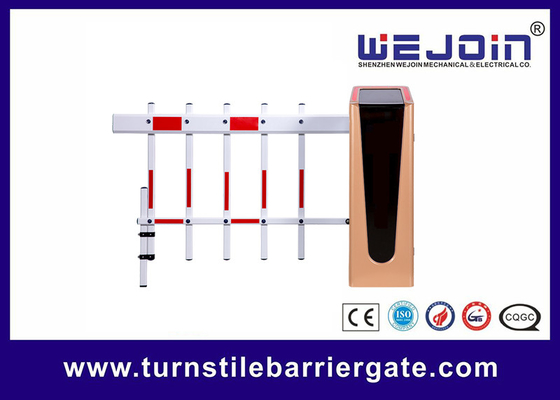

WEJOIN dc motor vehicle LED automatic boom barrier gate for smart car parking system
Product Brief Details:
Barrier offer a reliable and efficient method to ensure only authorized users are allowed access to each area of a building. The G20 is an attractive barrier that is easily capable of handling high volume and abusive conditions. The compact unit makes it simple to construct a multiple lane set-up while the variety in colors allows you to match this barrier perfectly to your lobby or branding.
Technical Data
|
Input Voltage |
AC 220V±10%, AC110V |
|
Motor Voltage |
DC310V |
|
Enclosure Rating |
IP54 |
|
Working Temperature |
-35°C~+85°C |
|
MTBF |
10000000 times |
|
Duty Cycle |
100% |
|
Traffic Flow Application |
24 hours uninterrupted operation |
|
Max Motor Power |
300W |
|
Max Motor Speed |
90r/min |
|
Max Torque |
480N.m |
Functions and Features
1. DC permanent magnet synchronous motor (PMSM) and servo control technology.
2. The motor has the same performance as the main motor of CNC machine and electric vehicle. It has high control precision, high torque density, good torque balance, low power consumption, high efficiency and low noise.
3. Three tension spring crank transmission design for more stable and reliable structure. (Patented Technology)
4. Scientific balance design, using special material spring, for better balance and maintenance-free.
5. No limit switch design, accurate encoder detection, detecting boom position when power on.
6. Electronic clutch design, more convenient to unlock or lock the motor when power off. ( Patented Technology)
7. Safety protection device (when the boom moves to up limit position) can prevent the boom from falling in case of sudden power failure, accidental spring breakage or spring fatigue.
8. Servo control motor with lower working temperature can support 24-hour continuous operation without downtime.
