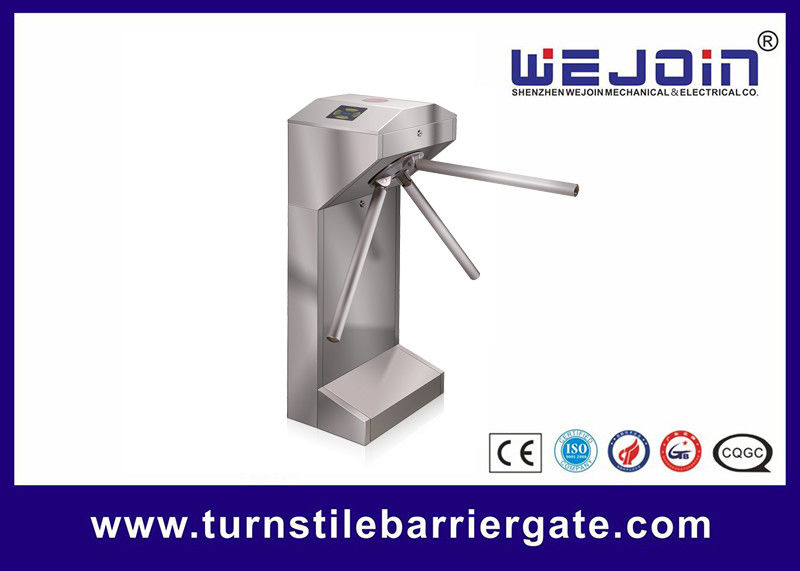

automatic gate barrier system tripod turnstile access control
Turnstile Barrier Gate Applications:
We have many types of full automatic tripod turnstiles for your selection, and have been widely applied to the hotel, office building, and school, metro to realize the intelligent management. The product in our company is complied with the strict electric technology standard and has quality and safety inspection certification.
Turnstile Barrier Gate Functions & Features
1.Auto replacement function, reposition after person pass by
2.Anti tail function auto-lock once turn 120° .
3.Arms auto drop when power off , insure unblocked when accident
4.Standard electronic interface, remote control through internet which is also could connect variety card readers and receive relay signal to work
5.Diverse control mode optional, changeable due to varying, convenient for your manage
6.Auto alert error function, comfort for user maintain and operate
7.Manual button or remote control ,Bio-directional passage
8.Open signal with memory or with out set function
9.Red and green light to show pass or stop, leisure to exit and entrance
Turnstile Barrier Gate Technical Parameters
|
Item |
WJAT211 |
Working Voltage of motor | DC12V |
|
Material of housing |
304 Stainless steel |
Rated Power | 50W |
|
Dimension of Housing |
420*330*980mm |
Transit speed | 25-32 persons/min |
|
Length of Pole (out of housing) |
490mm |
Working Temperature | -25℃~+55°C |
|
Net Weight |
50KG |
Relative humidity | <95%, no condensation |
About WEJOIN:
Founded in March 2004, Shenzhen WEJOIN Mechanical & Electrical Co. is a national high-tech enterprise specialized in R&D, production and sales of intelligent access control products. It has nearly 200 patented technologies. Its main products including high-end commercial servo barrier gate, high-end servo barrier gate, mid-end servo barrier gate, flap barrier, tripod turnstile, swing barrier, speed gate, etc., are suitable for the entry and exit management of vehicle and personnel such as high-speed toll gate, commercial plaza, residential areas, stations, customs checkpoints, etc.
