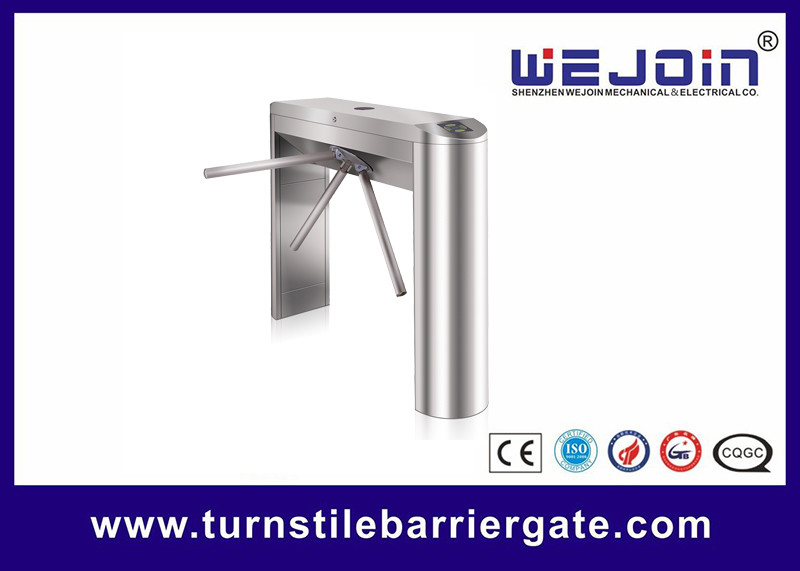

automatic gate barrier system tripod turnstile access control
Turnstile Barrier Gate Applications:
Could implement on many ranges such as company, infrastructure, government, transportation, living community, commercial property, etc.
Turnstile Barrier Gate Functions & Features
1 Auto replacement function, reposition after person pass by
2 Anti tail function auto-lock once turn 120.
3 Arms auto drop when power off , insure unblocked when accident
4 Standard electronic interface, remote control through internet which is also could connect variety card readers and receive relay signal to work
5 Diverse control mode optional, changeable due to varying, convenient for your manage
6 Auto alert error function, comfort for user maintain and operate
7 Manual button or remote control ,Bio-directional passage
8 Open signal with memory or with out set function
9 Red and green light to show pass or stop, leisure to exit and entrance
Turnstile Barrier Gate Technical Parameters
|
Item |
WJAT210 |
|
Material of housing |
304 Stainless steel |
|
Dimension of Housing |
1200*280*990mm |
|
Length of Pole(out of housing) |
490mm |
|
Net Weight |
70KG |
|
Max load-bearing of pole |
3kg |
|
Power Supply |
AC220V±10%,50HZ;AC110V±10%,60HZ |
|
Working Voltage of motor |
DC12V |
|
Rated Power |
50W |
|
Driving Motor |
Brush dc motor |
About WEJOIN:
Founded in March 2004, Shenzhen WEJOIN Mechanical & Electrical Co. is a national high-tech enterprise specialized in R&D, production and sales of intelligent access control products. It has nearly 200 patented technologies. Its main products including high-end commercial servo barrier gate, high-end servo barrier gate, mid-end servo barrier gate, flap barrier, tripod turnstile, swing barrier, speed gate, etc., are suitable for the entry and exit management of vehicle and personnel such as high-speed toll gate, commercial plaza, residential areas, stations, customs checkpoints, etc.
Since 2017, Shenzhen WEJOIN has invested heavily in building intelligent robot production lines. By the end of 2018, it has formed nearly 30 intelligent robot production lines with more than 160 sets of equipment. It has officially entered a new era of intelligent manufacturing, realizing the automation of precisely die-casting, accessories processing, whole assembly, packaging, etc,. The comprehensive automation rate is more than 75%, of which more than 90% of the spare parts are produced by intelligent robots, assuring the consistency and stability of the product quality. WEJOIN has an annual production capacity of 300,000 units barrier gates through intelligent products and intelligent manufacturing of “double intelligence” to help the industry develop steadily.
