Automatic Subway Access Control Gate Turnstile 304 Stainless Steel With IC Card Reader

automatic subway access control gate turnstile with IC card reader

Quick Detail:

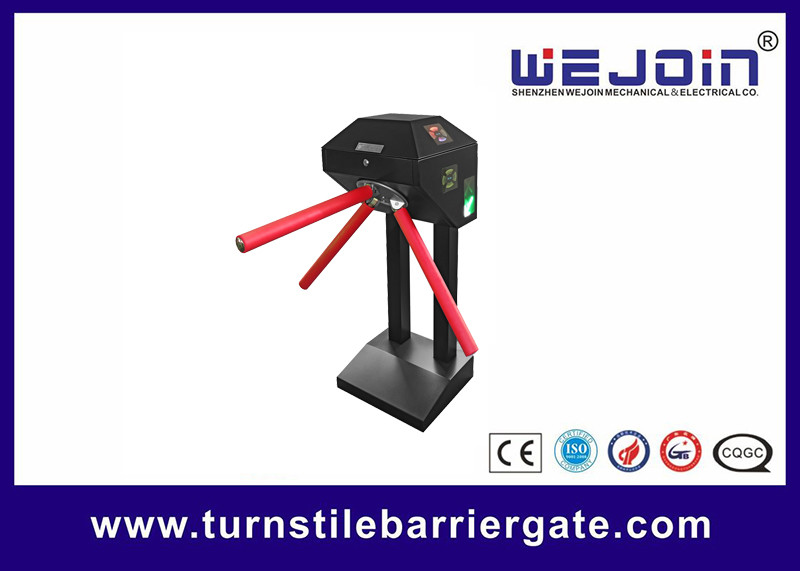

Name: Tripod turnstile
Driving Motor: Brushless DC Motor
Power Supply: 220V±10%, 110V±10%
Transit Speed: 30~40 persons/min
Rated Power: 36W
Rotating Direction: Double Direction

Function and Features:
⑴. A compact electro-mechanical design with an exquisite rotating plate and a self-lock mechanism
⑵. Passable for bi-direction
⑶. Self-locking within 5 seconds if there is no one passing after signal activation
⑷. Arm auto dropping when power off and manually put the arm up when power on
⑸ Person counter output is available to indicating passenger quantity; the pulse is 200MS
⑹. Able to avoid unauthorized access
⑺. Fire alarm emergency signal output: if with arm auto drop function, the arm will drop automatically after signal activation; if not, the arm rotating plate can operate freely and there is alarm after signal activation
⑻. Input interfaces available for left access(L), right access(R), emergency(EM), GND; EM is in priority; NO electrical replay output with pulse between 200MS~500MS; EM signal should maintain connected when any emergency happens.
⑼. Output interfaces available for passenger counters (left and right side); it is dynatron OC output with the pulse of 200MS; working with devices of DC 5V, 12V, 24V.
⑽. Emergency Alarm interfaces available for alarm equipments under 12W or DC12V

Specifications:
