Automatic Parking Entrance Barrier Gate 5 Million Cycles 6m Boom Cabon Steel Straight

Basic Information
Place of Origin: CHINA
Brand Name: WEJOIN
Certification: CE ISO SGS
Model Number: WJCB02H
Minimum Order Quantity: 1 set
Price: negociate
Packaging Details: carton
Delivery Time: 3-5 working days
Payment Terms: T/T, Western Union
Supply Ability: 10000 sets/month
Contact Now
Detail Information
Operating Time: 0.9-5s Boom Length: Max.6m
Anti-collision: Yes Remote Control Distance: <50 Meters
Application: Over-sized Traffic Flow Area Color: Silver

Product Description

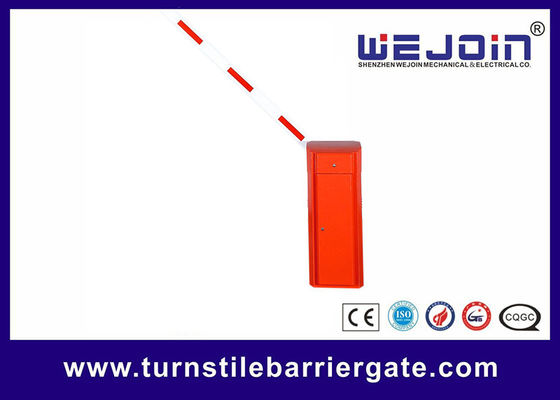

6m Boom automatic parking system barrier gate 5 million cycles



Product Description

Barrier gate, also named as intelligent / electric vehicle road blocker, is a widely used machine in gate access control application.
Boom barrier gate is very important for an automatic car parking management system and other traffic project; this equipment widely uses for block the road, manage the access of the gate for all vehicles such as car, truck, bus even motorbike. Everyday, you can easy find barrier gate at everywhere, airport, highway, commercial building, shopping mall, factory, hospital, and so on.



Technical Specifications:

Model

WJCB02E

Boom type

cabon steel straight

Max length of boom

2-3.5M

Time for up/down

3-5s

Environment temperature

-35°C~+85°C

Protection class

IP54

Max Motor Power

300W

Duty Cycle

100%



Functions & Features
1.DC permanent magnet synchronous motor(PMSM),servo control.
2.Superior performance,equivalent to the main motor of the CNC machine tool and the electric vehicle motor, it has high control precision, high torque density, good torque balance, low power consumption, high efficiency, less heat and low noise.
3.Bi-direction boom holder design: left-installation and right-installation can be exchanged easily and quickly.
4.Electronic clutch design: more convenient to unclck or lock the motor when power off.(patented technology)
5. Three tension spring crank transmission design, for more stable and reliable structure.(patented technology)
6.No limit switch design, accurate encoder detection, detecting boom position when power on. And open/close speed is adjustable.
7.More sensitive and reacting faster when reversing on obstacles.
8.With counting, delay auto-closing, auto-aging test, alarm when lifting boom without permission, motorcade passing function.
9.LCD display controller, more humanized operation and setting.
10.NO/NC wire control signal input are optional.
11.Integrated RS485 communication, RJ45 network, infrared photocell, loop detector interface, radar module and more secondary development.





Automatic Parking Entrance Barrier Gate 5 Million Cycles 6m Boom Cabon Steel Straight
