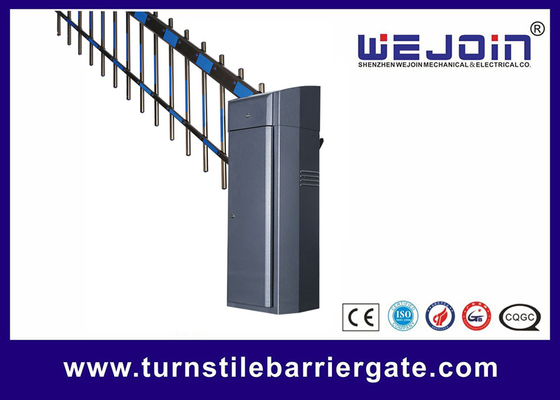

Two Fence Boom Automatic Parking Lot Barrier Servo Control Motor For Access Control

Basic Information
Place of Origin: CHINA
Brand Name: WEJOIN
Certification: CE ISO SGS
Model Number: WJCB02H
Minimum Order Quantity: 1 set
Price: negociate
Packaging Details: carton
Delivery Time: 3-5 working days
Payment Terms: T/T, Western Union
Supply Ability: 10000 sets/month
Detail Information
Boom Length: Max.6m Anti-collision: Yes
Remote Control Distance: <50 Meters Application: Over-sized Traffic Flow Area
Color: Black Protection Class: IP54
High Light:

Servo Control Motor barrier car park


automatic barriers for car parks


Two Fence Boom vehicle entrance barriers

Product Description

two fence boom automatic parking lot barrier for access control


Product Description

Barrier Gate offer a reliable and efficient method to ensure only authorized users are allowed access to each area of a building. The WJCB02 is an attractive barrier gate that is easily capable of handling high volume and abusive conditions. The compact unit makes it simple to construct a multiple lane set-up while the variety in colors allows you to match this barrier gate perfectly to your lobby or branding.


Characters :

1. DC permanent magnet synchronous motor (PMSM) and servo control technology.

2. The motor has the same performance as the main motor of CNC machine and electric vehicle. It has high control precision, high torque density, good torque balance, low power consumption, high efficiency and low noise.

3. Three tension spring crank transmission design for more stable and reliable structure. (Patented Technology)

4. Scientific balance design, using special material spring, for better balance and maintenance-free.

5. No limit switch design, accurate encoder detection, detecting boom position when power on.

6. Electronic clutch design, more convenient to unlock or lock the motor when power off. ( Patented Technology)

7. Safety protection device (when the boom moves to up limit position) can prevent the boom from falling in case of sudden power failure, accidental spring breakage or spring fatigue.

8. Servo control motor with lower working temperature can support 24-hour continuous operation without downtime.

9. Bi-direction boom holder design, left-installation and right-installation can be exchanged easily and quickly.

10. More sensitive and reacting faster when reversing on obstacles.


Specifications :

Product name automatic boom barrier
Open/close time 0.9-5s depends on the arm length
Octagonal Arm 3.5-6m
Power Supply AC 220V±10%,50/60HZ
Remote distance >30M
Housing material 2mm cold-roller sheet
IP level IP54
G.W 60 KG
Operating temperature -35°c -85°c


Why choose us
1. Research and development: appearance research and development
2. Personality service: product
diversification,Private customization appearance,Perfect after-sale service system
3. Selling directly to customers:Strong production capacity, self-sale.


Two Fence Boom Automatic Parking Lot Barrier Servo Control Motor For Access Control 0
