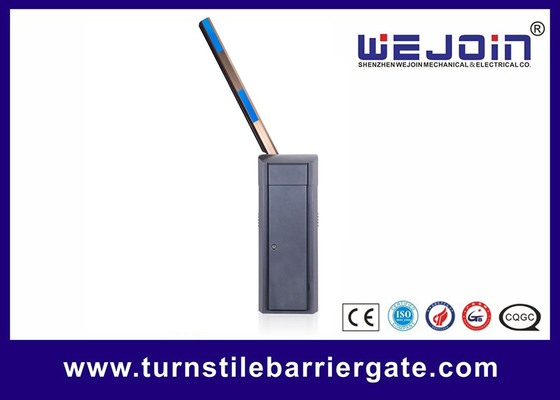

CNC Precision Machining Parking Entrance Barrier IP54 For Residential Area

1 set
MOQ
negociate
Price
CNC Precision Machining Parking Entrance Barrier IP54 For Residential Area
Features Gallery Product Description Request A Quote
Features
Specifications
Boom Length: Max.6m
Anti-collision: Yes
Remote Control Distance: <50 Meters
Application: Over-sized Traffic Flow Area
Color: Black
Protection Class: IP54
Highlight:

parking lot arm gate

,

car park barriers

Basic Infomation
Place of Origin: CHINA
Brand Name: WEJOIN
Certification: CE ISO SGS
Model Number: WJCB02H
Payment & Shipping Terms
Packaging Details: carton
Delivery Time: 3-5 working days
Payment Terms: T/T, Western Union
Supply Ability: 10000 sets/month
Product Description

two fence boom automatic parking lot barrier for access control



Product Description

Barrier Gate offer a reliable and efficient method to ensure only authorized users are allowed access to each area of a building. The WJCB02 is an attractive barrier gate that is easily capable of handling high volume and abusive conditions. The compact unit makes it simple to construct a multiple lane set-up while the variety in colors allows you to match this barrier gate perfectly to your lobby or branding.



Characters :

1. DC permanent magnet synchronous motor (PMSM) and servo control technology.

2. The motor has the same performance as the main motor of CNC machine and electric vehicle. It has high control precision, high torque density, good torque balance, low power consumption, high efficiency and low noise.

3. Three tension spring crank transmission design for more stable and reliable structure. (Patented Technology)

4. Scientific balance design, using special material spring, for better balance and maintenance-free.

5. No limit switch design, accurate encoder detection, detecting boom position when power on.

6. Electronic clutch design, more convenient to unlock or lock the motor when power off. ( Patented Technology)

7. Safety protection device (when the boom moves to up limit position) can prevent the boom from falling in case of sudden power failure, accidental spring breakage or spring fatigue.

8. Servo control motor with lower working temperature can support 24-hour continuous operation without downtime.

9. Bi-direction boom holder design, left-installation and right-installation can be exchanged easily and quickly.

10. More sensitive and reacting faster when reversing on obstacles.



Specifications :

Product name automatic boom barrier
Open/close time 0.9-5s depends on the arm length
Octagonal Arm 3.5-6m
Power Supply AC 220V±10%,50/60HZ
Remote distance >30M
Housing material 2mm cold-roller sheet
IP level IP54
G.W 60 KG
Operating temperature -35°c -85°c



FAQ
1. How about the quality of your products?
We are in the highest level of quality with the most competitive price. At factory, we implement 5S management to control production process.

2. How do you do after-sale service?
We provide life-time technology support on line, by emails, video, phone etc. We have engineer speaking English, convenient to communicate with you directly.

3. How about the payment method?
Standard products: 30% deposit, 70% balance payment before shipment.

4. How about the delivery time?
Normally we have stock for the hot sale models of standard products.
Regular products need 7-10 working days.
The customized products need 15-20 working days.

5. How long is your warranty period?
One-year guarantee & Life-time technology support.

6. How about your package?
Seaworthy wooden case + Foam.
