| Place of Origin: | CHINA |
|---|---|
| Brand Name: | WEJOIN |
| Certification: | CE ISO SGS |
| Model Number: | WJCB02H |
| Minimum Order Quantity: | 1 set |
| Price: | negociate |
| Packaging Details: | carton |
| Delivery Time: | 3-5 working days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 10000 sets/month |
| Boom Length: | Max.6m | Anti-collision: | Yes |
|---|---|---|---|
| Remote Control Distance: | <50 Meters | Application: | Over-sized Traffic Flow Area |
| Color: | Black | Protection Class: | IP54 |
| High Light: | Electronic Clutch Automatic Barrier Gate,Automatic Barrier Gate 6m Boom,IP54 Vehicle Barrier Gates |
||

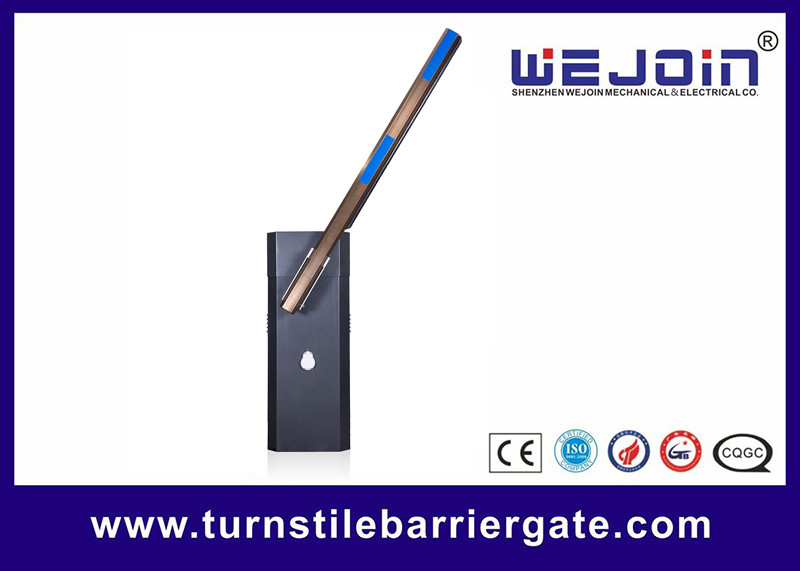

Automatic Traffic Access Road Barrier Gate for Car Parking Lot
Functions and Features
1. Innovative electronic clutch design: press the electronic clutch switch to unlock when power off, then the boom can be raised up directly.
2. No limit switch design: the motor can detect the boom position automatically.
3. Bi-direction boom holder design: left-installation and right-installation can be exchanged easily and quickly.
4. Three springs available can extend the spring service life.
5. The auto-detect barrier close after power-on, open/close speed is adjustable.
6. With auto-reversing on obstruction function.
7. An infrared photocell interface is available. (need to install photocell device).
8. Loop detector interface is available, to avoid hitting the vehicle, and control the boom falling down automatically after vehicle passing (need to install loop detector).
Application:
Office Buildings.
Shopping Centers.
Car Parks.
Distribution and Warehouse Facilities.
Commercial and Industrial Facilities.
Government Buildings.
Parameter
|
Input Voltage |
AC 220V±10%, AC110V |
|
Motor Voltage |
DC310V |
|
Enclosure Rating |
IP54 |
|
Working Temperature |
-35°C~+85°C |
|
MTBF |
10000000 times |
|
Duty Cycle |
100% |
|
Traffic Flow Application |
24 hours of uninterrupted operation |
|
Max Motor Power |
300W |
|
Max Motor Speed |
90r/min |
|
Max Torque |
480N.m |
FAQ
Q1: Do you have an English language system?
A: We can sell you with hardware only. Also, if you want with the system as well, we have our system supports the English language.
Q2: Can we connect your access control system with our system?
A: Yes, we provide SDK and Software development services with connection port.
Q3: Are your turnstile/barrier gates waterproof?
A: Yes, our turnstile/barrier gates have a waterproof feature.
Q4: Do you have CE and ISO9001 certificate?
A: Yes, our products have passed CE and ISO9001 certificates, and we can send you a copy if you want.
Q5: How can we install those turnstile/barrier gates? Is it easy to do?
A: Yes, it's really easy to install, we have done most of the jobs before sending our products. You just need to fix the gates with screws, and connect power supply cables and internet cables.
Q6: How about your warranty?
A: Our products have one year warranty.
