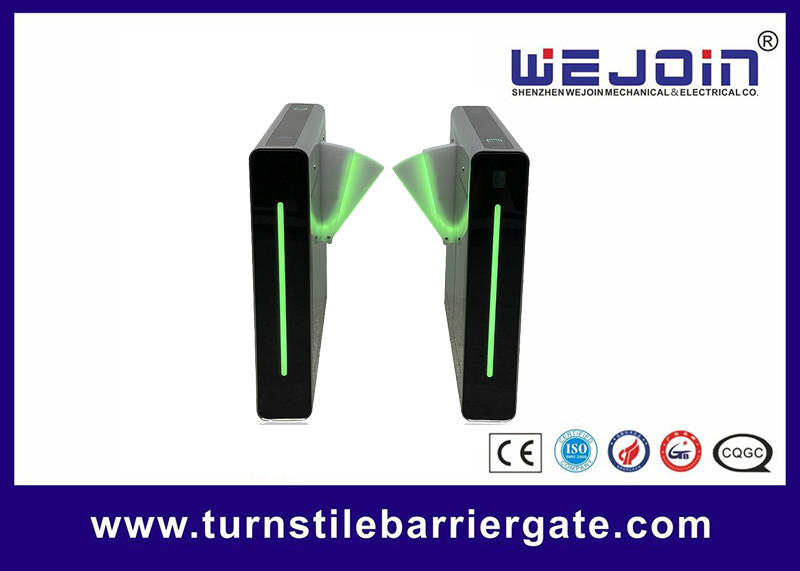

High-performance flap barrier gate QR code face recognition turnstile
Functions & Feature:
1. Adopting a self-developed planetary gear reducer structure, driven by DC permanent magnet motor, it has special dynamic characteristics such as compact structure, large torque, low noise, and wear resistance.
2. Adopting a self-developed servo control system, for precise control, more flexible running, less mechanical impact, and longer service life.
3. Using frequency conversion technology, which realizes running speed adjustment, to meet different access requirements and have a better experience.
4. Mechanical transmission parts are precisely made of high-strength plastic with a pure mode design, which improves the accuracy of spare parts and assembly, with a more compact operation, smaller operation gap, and longer service life.
Technical Data:
No. |
Item |
Data |
1 |
Working Temperature |
-25℃~+70℃ |
2 |
Input Voltage of Power Supply |
AC110/220V±10% |
3 |
Input Voltage of Controller |
DC24V ±10% |
4 |
Working Voltage of Motor |
DC24V |
5 |
Motor Power |
50W |
6 |
Relative Humidity |
90% (no condensation) |
7 |
Material of Cabinet |
304 stainless steel |
8 |
Width of Passage |
600mm (a pair) |
9 |
Opening & Closing Speed |
0.2~1 seconds adjustable |
10 |
MTBF |
10,000,000 times |
WEJOIN Profile
From raw materials to spare parts, as well to finished products, WEJOIN is currently the only domestic enterprise that adopts large-scale intelligent manufacturing in the entire industry chain. With the industry 4.0 standard as the goal, WEJOIN will realize informationized and unmanned production, continue to increase the development of new technology and the investment of intelligent automation equipment for barrier gates, improve the manufacturing accuracy, operating life, and stability of the barrier gates, and make them more convenient, more intelligent and more reliable.
