| Place of Origin: | China |
|---|---|
| Brand Name: | WEJOIN |
| Certification: | ISO,CE |
| Model Number: | WJTY601 |
| Minimum Order Quantity: | 1unit |
| Price: | negotiation |
| Packaging Details: | Wooden box |
| Delivery Time: | 10-30 days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 50PCS/week |
| Wing: | Organic Glass | Function: | Anti-collision And Crashworthy |
|---|---|---|---|
| Advantage: | High Quality, Service & Factory Price | Operation: | Bi-direction |
| Usage: | Metro Station, Office, Library, Hotel | Trade Terms:: | EXW,CIF |
| High Light: | Anti Collision Flap Barrier Gate,Stadium Flap Barrier Gate,Security Waist Height Turnstile |
||

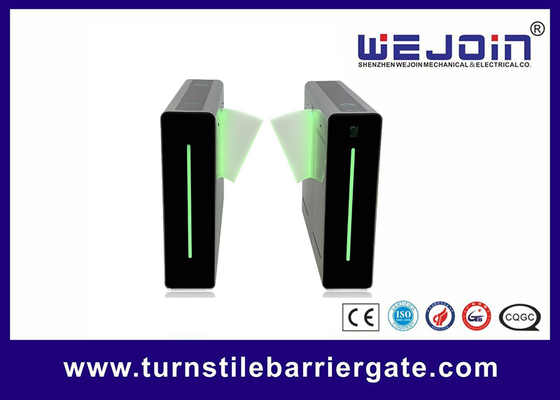

Security Waist Height Turnstile Barrier Flap Barrier Gate
Servo Flap Barrier Technical Data:
|
1 |
Working Temperature |
-25℃～+70℃ |
|
2 |
Input Voltage of Power Supply |
AC110/220V±10% |
|
3 |
Input Voltage of Controller |
DC24V ±10% |
|
4 |
Motor Power |
50W |
|
5 |
Material of Cabinet |
304 stainless steel |
|
6 |
Width of Passage |
600mm (a pair) |
|
7 |
Opening & Closing Speed |
0.2~1 seconds adjustable |
|
8 |
MTBF |
10,000,000 times |
Functions & Feature:
1. Adopting a self-developed planetary gear reducer structure, driven by DC permanent magnet motor, it has special dynamic characteristics such as compact structure, large torque, low noise, and wear resistance.
2. Adopting a self-developed servo control system, for precise control, more flexible running, less mechanical impact, and longer service life.
3. Using frequency conversion technology, which realizes running speed adjustment, to meet different access requirements and have a better experience.
4. Mechanical transmission parts are precisely made of high-strength plastic with a pure mode design, which improves the
accuracy of spare parts and assembly, with the more compact operation, smaller operation gap, and longer service life.
5. The exquisite product design, not only meets the longer life service, but also reduces the difficulty of the maintenance, and ensures the traffic capacity of high pedestrian volume areas under quick overhaul, maintenance, and repair situations.
6. The flap is made by plastic mold to achieve standardization and refinement, coordinating with surface
treatment technique, which can create the best visual effect of lighting.
7. Opening and closing speeds are adjustable.
8. Support RS232 communication module and Modbus protocol.
9. Support voice function, trumpet is optional.
10. Automatic opening when power off, DC12V backup battery is optional.
WEJOIN's Main Advantages
1.The global leading company for barrier gate
2.Master of core technology and innovation
3.The intelligent quality manufacturing process and automatic flexible production
4.The global advanced manufacturing process and testing equipment
5.Servo, variable frequency, double speed,bi-direction motor, and other leading technique
6. High speed and low speed coexist in motor
7.Integral service network covering first-tier and second-tier cities, and more under the construction service network
