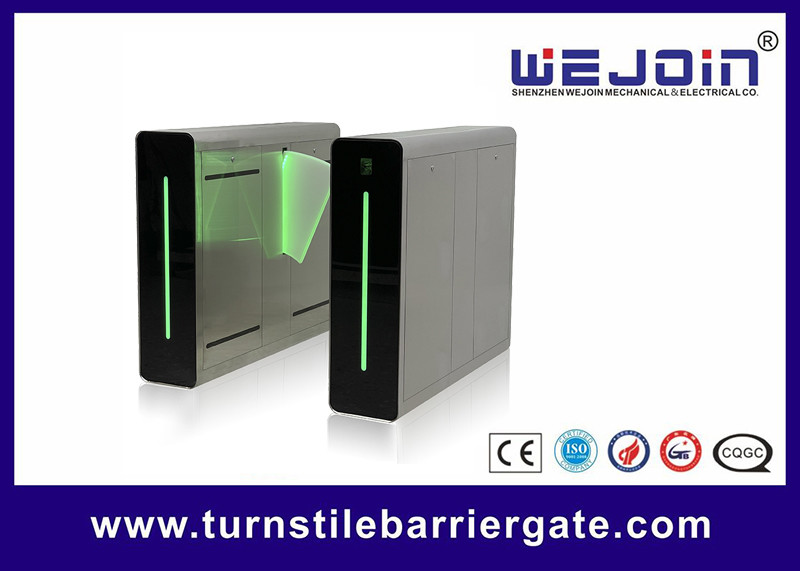

Intelligent High-Speed Flap Barrier Gate
Servo Flap Barrier Technical Data:
1. Working Temperature: -20℃～+70℃
2. Power Supply: AC110/220V±10%
3. Input Voltage of Controller: DC24V ±10%
4. Working Voltage of Motor: DC24V
5. Motor Power: 50W
6. Relative Humidity: 90% (no condensation)
7. Material of Cabinet: 304 stainless steel
8. Width of Passage: 600mm (a pair)
9. Opening & Closing Speed: 0.2~1 seconds adjustable
10. MTBF: 10,000,000 times
Speed Gate Functions & Feature:
|
1 |
Motor |
Self-developed planetary gear reducer structure, driven by DC permanent magnet motor, compact structure, large torque, low noise and wear resistance. |
|
2 |
Control System |
The self-developed servo control system, precise control, more flexible running, less mechanical impact, and longer service life. |
|
3 |
Technology |
Frequency conversion technology, running speed adjustable, automatic opening when power off, meet different access requirements and have a better experience. |
|
4 |
Mechanical Transmission Parts |
Precisely made of high-strength plastic, pure mode design, improving the accuracy of spare parts and assembly, more compact operation, smaller operation gap, and longer service life. |
|
5 |
Wing |
Made by plastic mold, standardization, and refinement, surface treatment technique, the best visual effect of lighting. |
Common Malfunctions and Solutions
1. The gate shows no reaction with an open signal.
A. The open indicator light on the control board does not receive the signal.
B. The open signal lines are not connected well.
C. The fuse 5A is burned.
2. Giving the open signal, one machine can open, but the other one can not.
A. the connection lines between these two machines are not connected well.
B. plugs on the control board are not connected well.
