| Place of Origin: | China |
|---|---|
| Brand Name: | WEJOIN |
| Certification: | CE,ISO |
| Model Number: | WJST302 |
| Minimum Order Quantity: | 1PCS |
| Price: | negotiation |
| Packaging Details: | wooden box |
| Delivery Time: | 5-10 days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 50PCS/week |
| Width Of Passage: | 600~1100mm (a Pair) | Power Supply: | AC220V±10%, AC110V±10% |
|---|---|---|---|
| Material Of Cabinet: | 304 Stainless Steel | Working Voltage Of Motor: | DC24V |
| Relative Humidity: | ≤90% | Application: | Office\School\Airport\Subway\Outdoor |
| High Light: | Security Swing Barrier Gate,ISO Glass Arm Swing Barrier Gate,Swing Barrier Turnstile With Face Recognition |
||

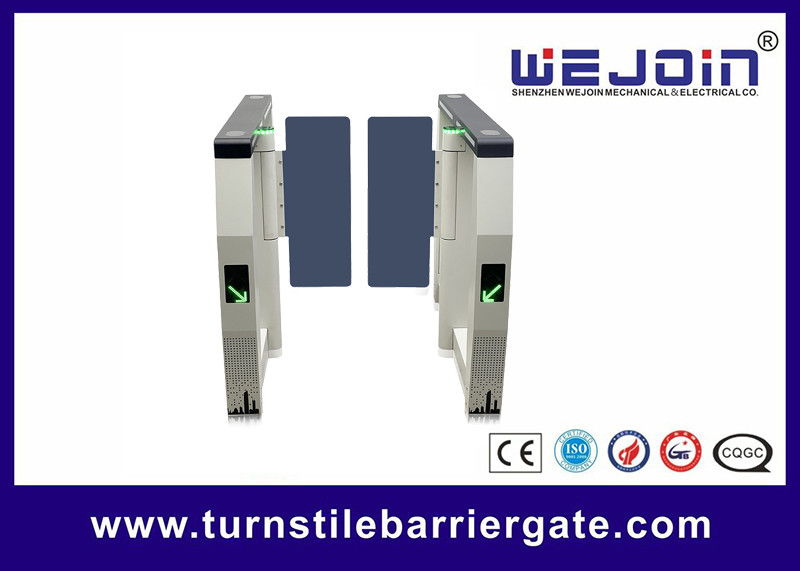

High-security glass arm face scan turnstile swing barrier gate
Product Application
Intelligent swing gate ---can be compatible with IC card, ID card, barcode card, fingerprint reading card recognition device used for staff, provide civilized, orderly access methods; effectively manage the access of staff.
Main Features
1. Adopting a self-developed tubular two-stage planetary gear reducer structure, driven by DC permanent magnet motor, it has special dynamic characteristics such as compact structure, large torque, low noise and wears resistance.
2. Adopting a self-developed servo control system, for precise control, more flexible running, less mechanical impact, and longer service life.
3. Using frequency conversion technology, which realizes running speed adjustment, to meet different access requirements and have a better experience.
4. Fast and stable operation, the fastest opening speed can reach 0.2 seconds.
Specifications
|
Item |
Swing Barrier Mechanism |
|
Motor Power |
50W |
|
Arm Length(Optional) |
600~1100mm (a pair) |
|
Swing Direction |
double direction or single |
|
Voltage |
AC 220V±15% ,110V±15% |
|
Driving Motor |
DC24V |
About Us
Since 2017, Shenzhen WEJOIN has invested heavily in building intelligent robot production lines. By the end of 2018, it has formed nearly 30 intelligent robot production lines with more than 160 sets of equipment. It has officially entered a new era of intelligent manufacturing, realizing the automation of precisely die-casting, accessories processing, the whole assembly, packaging, etc,. The comprehensive automation rate is more than 75%, of which more than 90% of the spare parts are produced by intelligent robots, assuring the consistency and stability of the product quality. WEJOIN has an annual production capacity of 300,000 units barrier gates through intelligent products and intelligent manufacturing of “double intelligence” to help the industry develop steadily.
